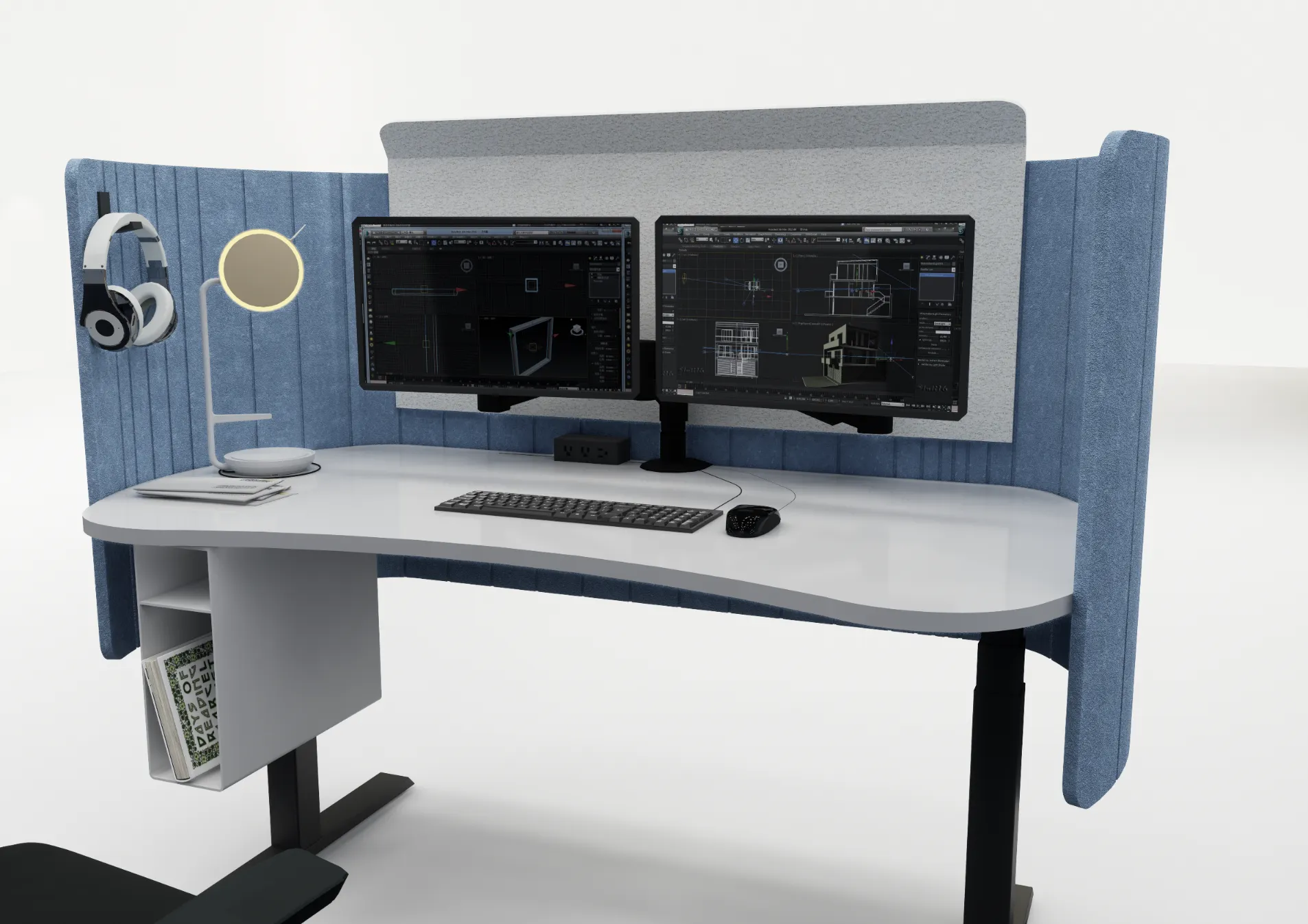

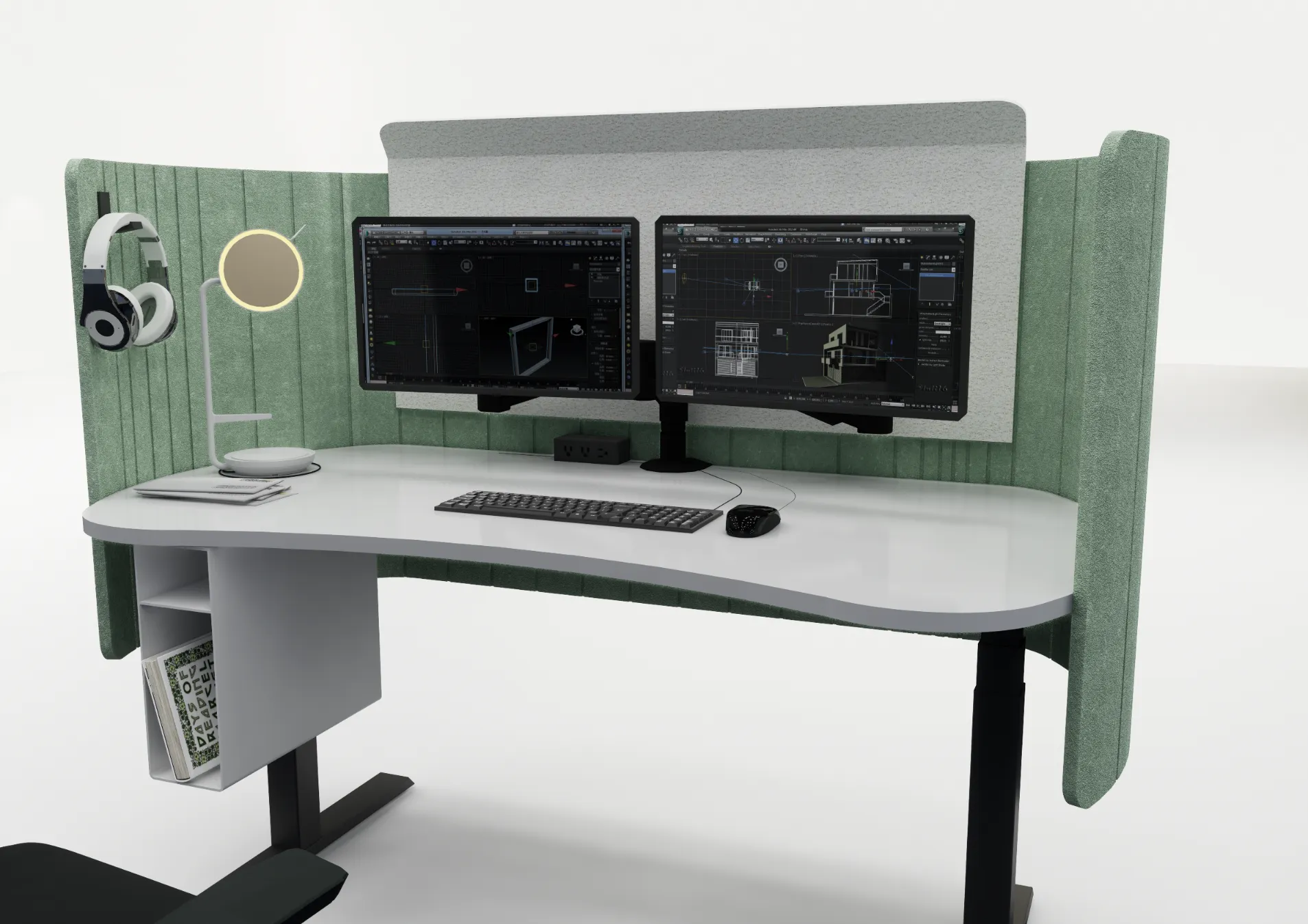

Acoustic Desk – Screen Type 1
Acoustics Solutions For Open-Plan Offices with Customisable, Eco-Friendly Design
Acoustic Desk Screen Type 1 is a modular acoustic desk screen offering an innovative solution for enhancing acoustic performance in open-plan offices. It is engineered with desk and VC-wrapped screens made of 100% polyester fibre and 60% recycled water bottles.
Our noise-absorbing desk screen is fully customisable, enabling you to tailor its size, shape, and colour to your specific requirements.
Our panels are made from 60% recycled plastic water bottles.
Surface:
Kidney Bean Shape,
Fenix J0029 Bianco Male
Desk Screen:
Wrapped Screen in PET
VC Screen:
Wrapped Screen in PET
Storage:
Suspended bag drop
Hook
Hook for different accessories such as headphones.
Power access
Power connections: 2 Power Sockets +2 USB-A chargers
Suspended storage
Surface:
Kidney Bean Shape,
Fenix J0029 Bianco Male
Desk Screen:
Wrapped Screen in PET
VC Screen:
Wrapped Screen in PET
Storage:
Suspended bag drop
Hook
Hook for different accessories such as headphones.
Power access
Power connections: 2 Power Sockets +2 USB-A chargers
Suspended storage
Curved screen
| DIMENSIONS | Available in two thicknesses 12mm and 24mm Desk screens fit onto 1200mm, 1400mm, & 1600mm desks With the screen returning 600mm back onto the desk Desk screen height options are 400mm & 600mm height |
|---|---|
| DENSITY | 12mm: 2.0 kg/m² 24mm: 3.5 kg/m² |
| MATERIALS | 100% Polyester Fiber (PET) – 65% recycled material |
| INSTALLATION SYSTEM | Attached to the surface |
| ACOUSTIC RESISTANCE | 12mm: 0.45, 0.80 24mm: 0.75, 0.95 |
|---|---|
| THERMAL RESISTANCE | RO.82 (@15°) |
| VOC CONCENTRATION | 0.009 mg/m3 (7 days) |
| WATER VAPOR ABSORPTION | ASTM C1104 / C1104-13a Test conditions: 49°C, 95%RH Water vapor absorbed and adsorbed after 4 days: 0.4% by weight |
| IMPACT RESISTANCE | ISO 7892:1988 |
| COLOUR FASTNESS | ISO 105-X12:2016 Dry rating: 4-5 (Highest = 5) Wet rating: 4-5 (Highest = 5) |
| Europe and UK | EN13501-1:2007 |
|---|---|
| Thickness | 24mm |
| Acoustic Classification | Class C NRC 0.75 Direct Fix Class B NRC 0.75 with 50mm Air Gap |
Variations in fibre mix and colours may occur.
All products will be supplied within commercial tolerances.
| DIMENSIONS | Available in two thicknesses 12mm and 24mm Desk screens fit onto 1200mm, 1400mm, & 1600mm desks With the screen returning 600mm back onto the desk Desk screen height options are 400mm & 600mm height |
|---|---|
| DENSITY | 12mm: 2.0 kg/m² 24mm: 3.5 kg/m² |
| MATERIALS | 100% Polyester Fiber (PET) – 65% recycled material |
| INSTALLATION SYSTEM | Attached to the surface |
| ACOUSTIC RESISTANCE | 12mm: 0.45, 0.80 24mm: 0.75, 0.95 |
|---|---|
| THERMAL RESISTANCE | RO.82 (@15°) |
| VOC CONCENTRATION | 0.009 mg/m3 (7 days) |
| WATER VAPOR ABSORPTION | ASTM C1104 / C1104-13a Test conditions: 49°C, 95%RH Water vapor absorbed and adsorbed after 4 days: 0.4% by weight |
| IMPACT RESISTANCE | ISO 7892:1988 |
| COLOUR FASTNESS | ISO 105-X12:2016 Dry rating: 4-5 (Highest = 5) Wet rating: 4-5 (Highest = 5) |
| Europe and UK | EN13501-1:2007 |
|---|---|
| Thickness | 24mm |
| Acoustic Classification | Class C NRC 0.75 Direct Fix Class B NRC 0.75 with 50mm Air Gap |
Variations in fibre mix and colours may occur.
All products will be supplied within commercial tolerances.
