Calmtone Fins
Sustainable Acoustic Ceiling Panels with Thermal Insulation & Lighting Integration

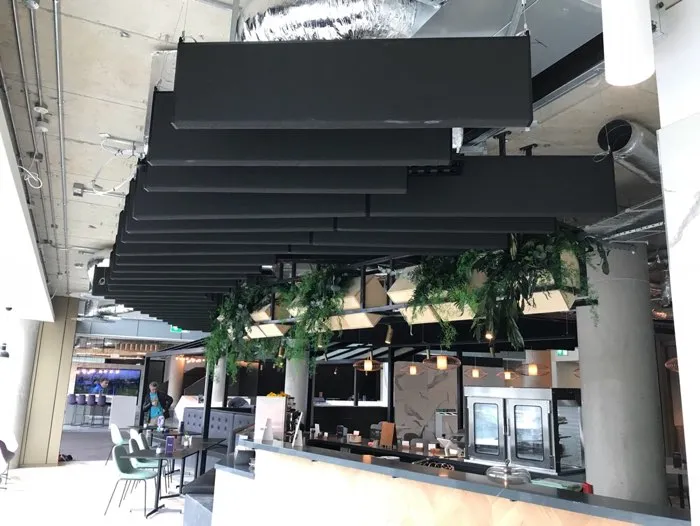

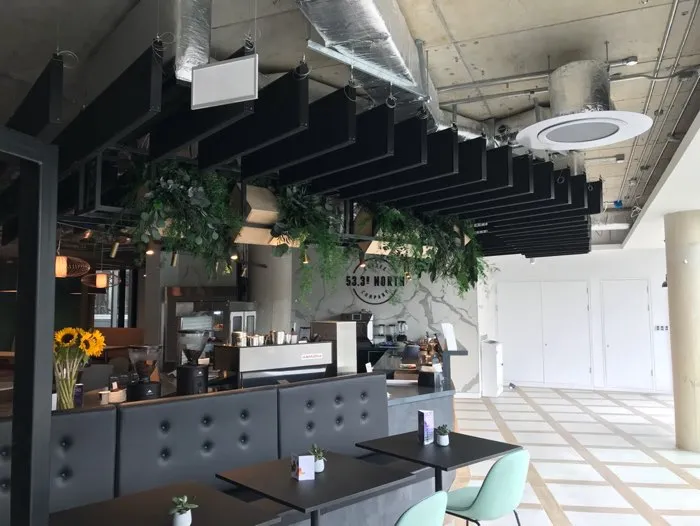

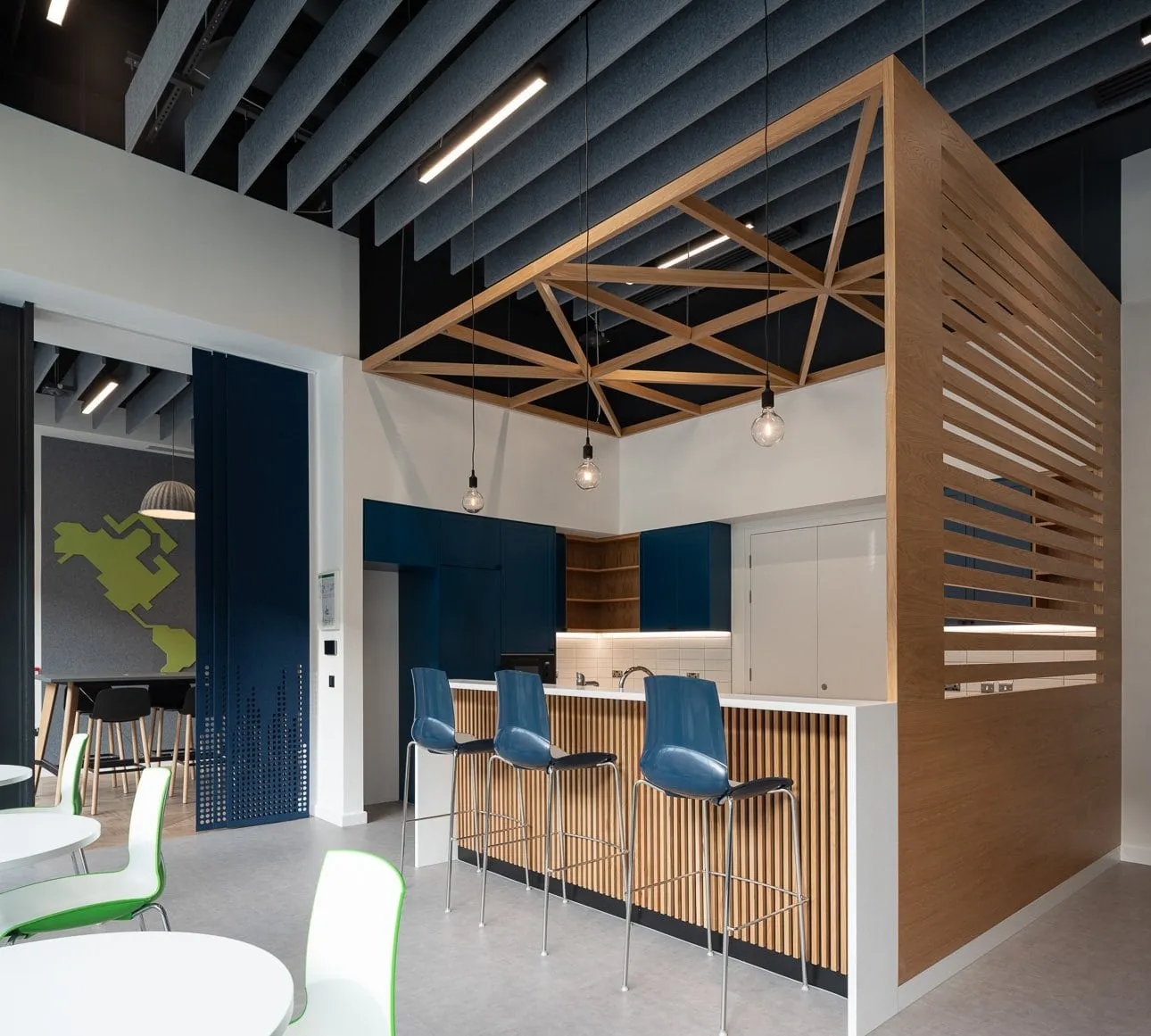

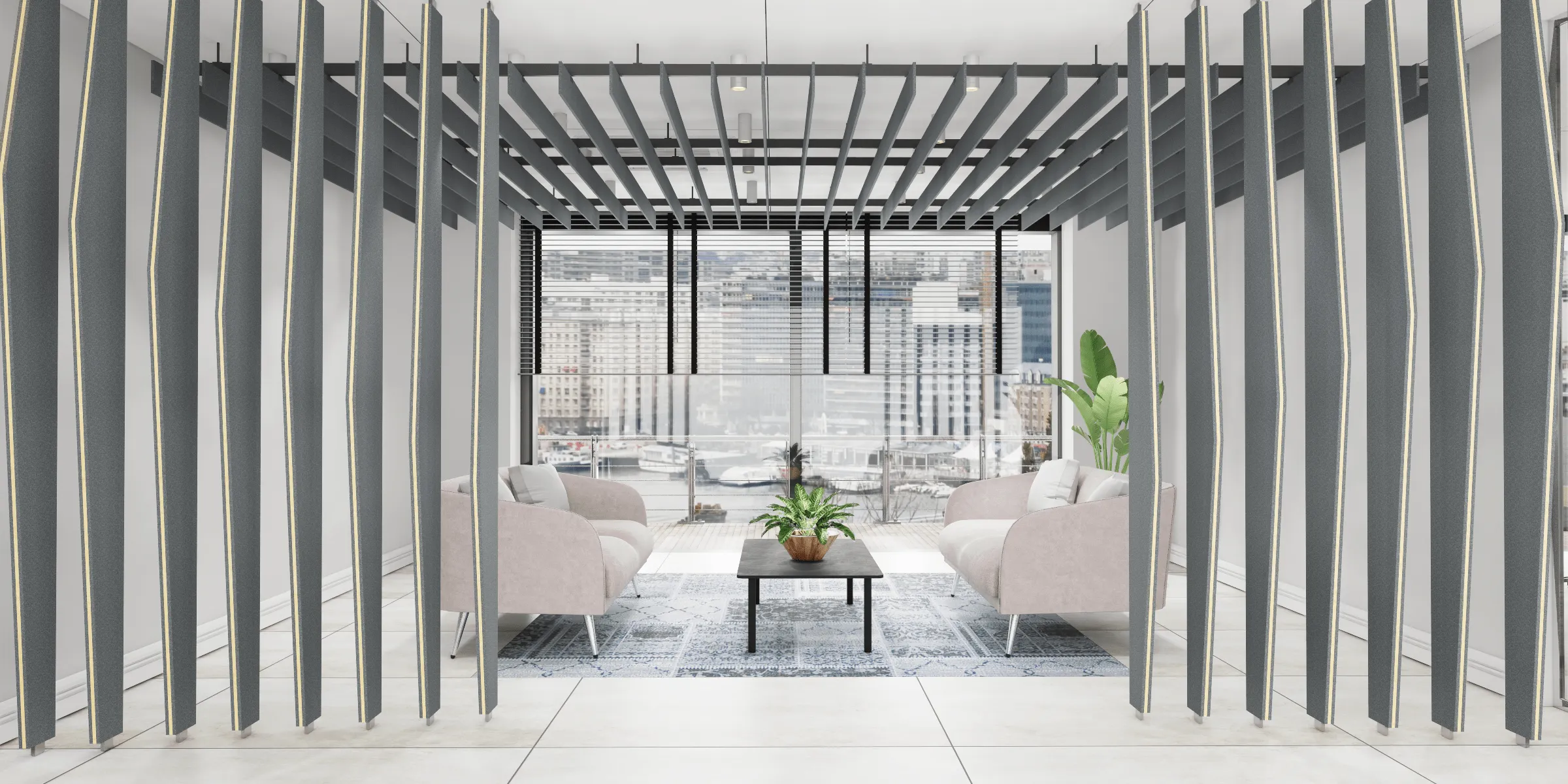

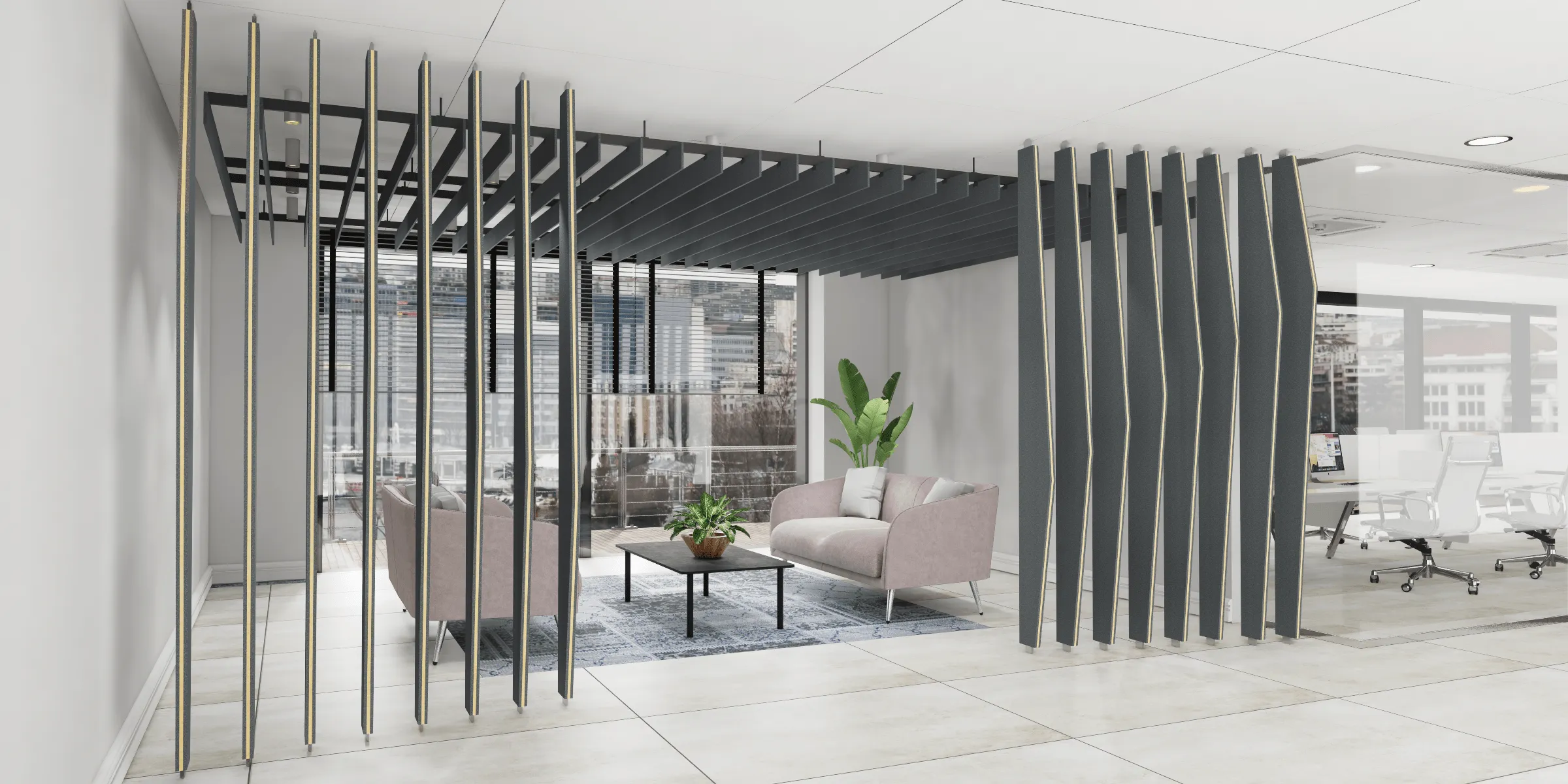

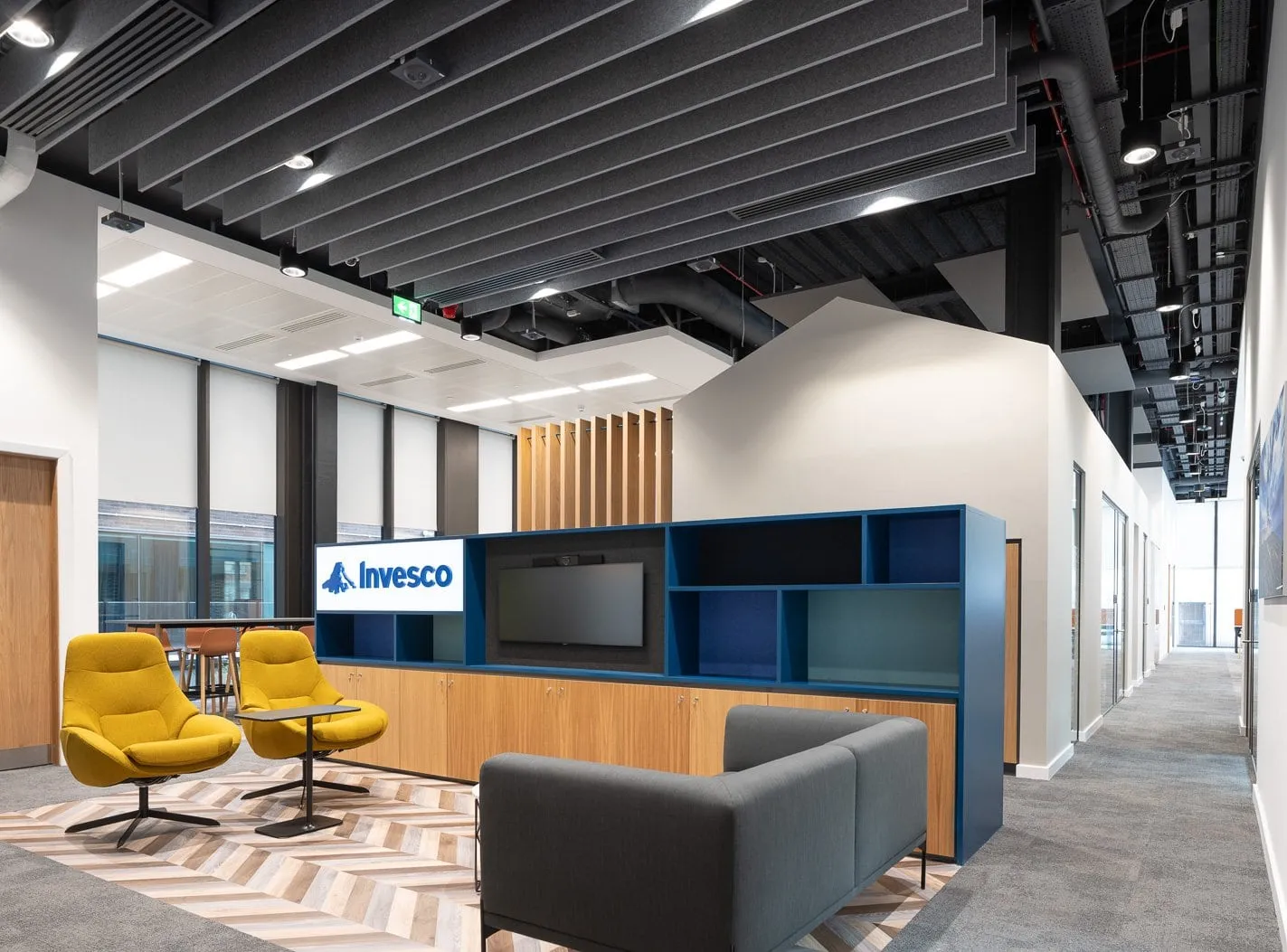

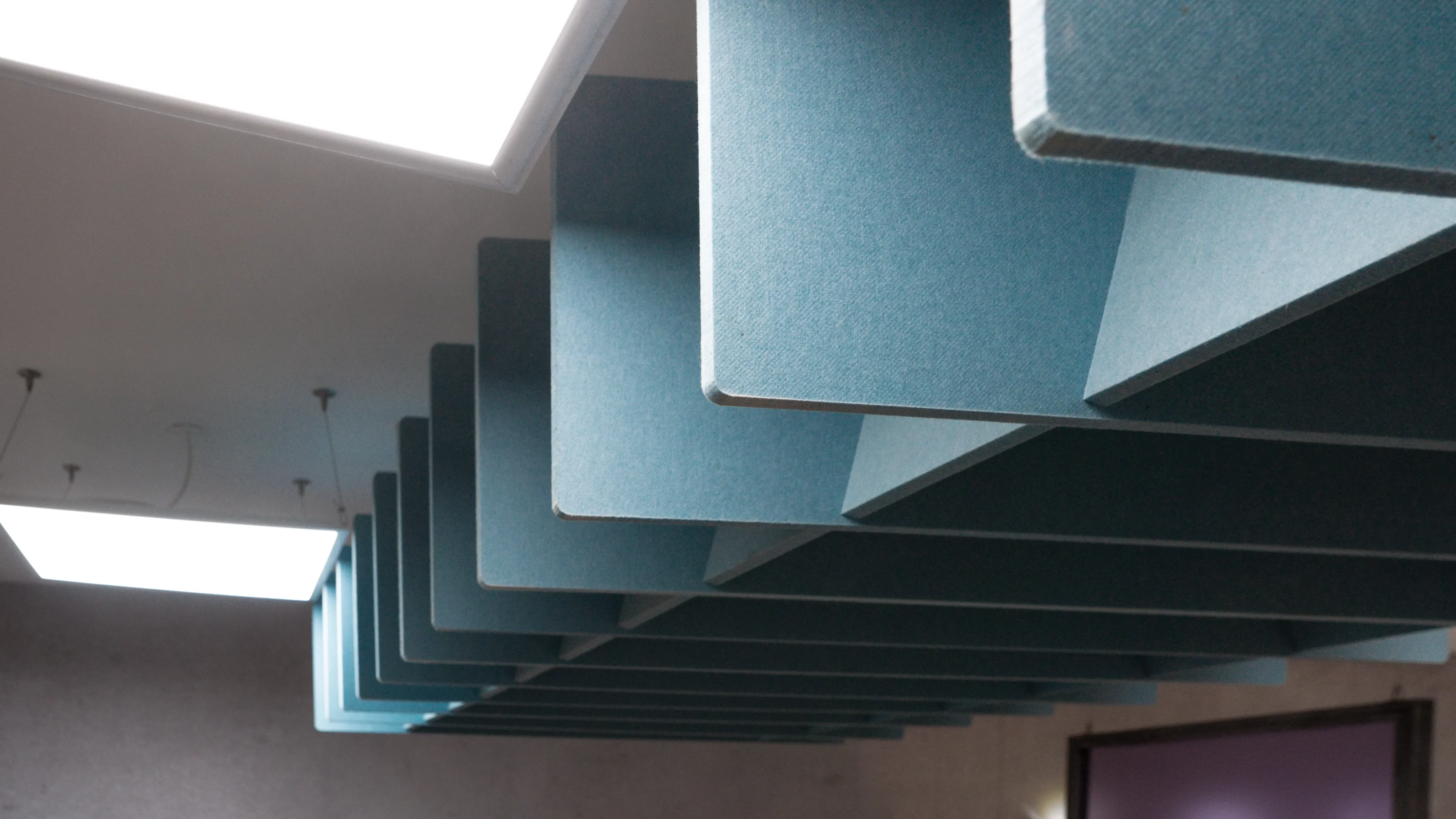

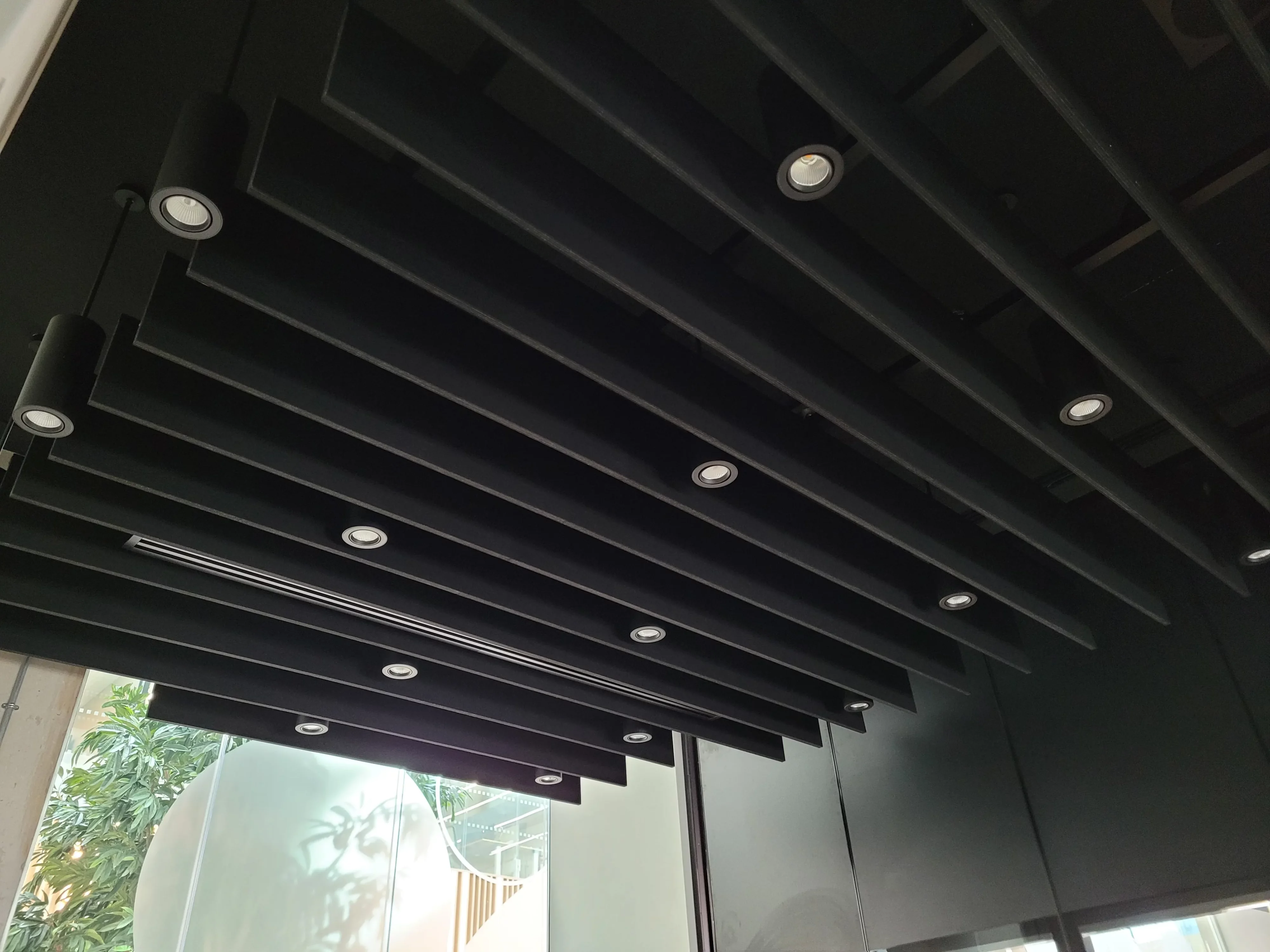

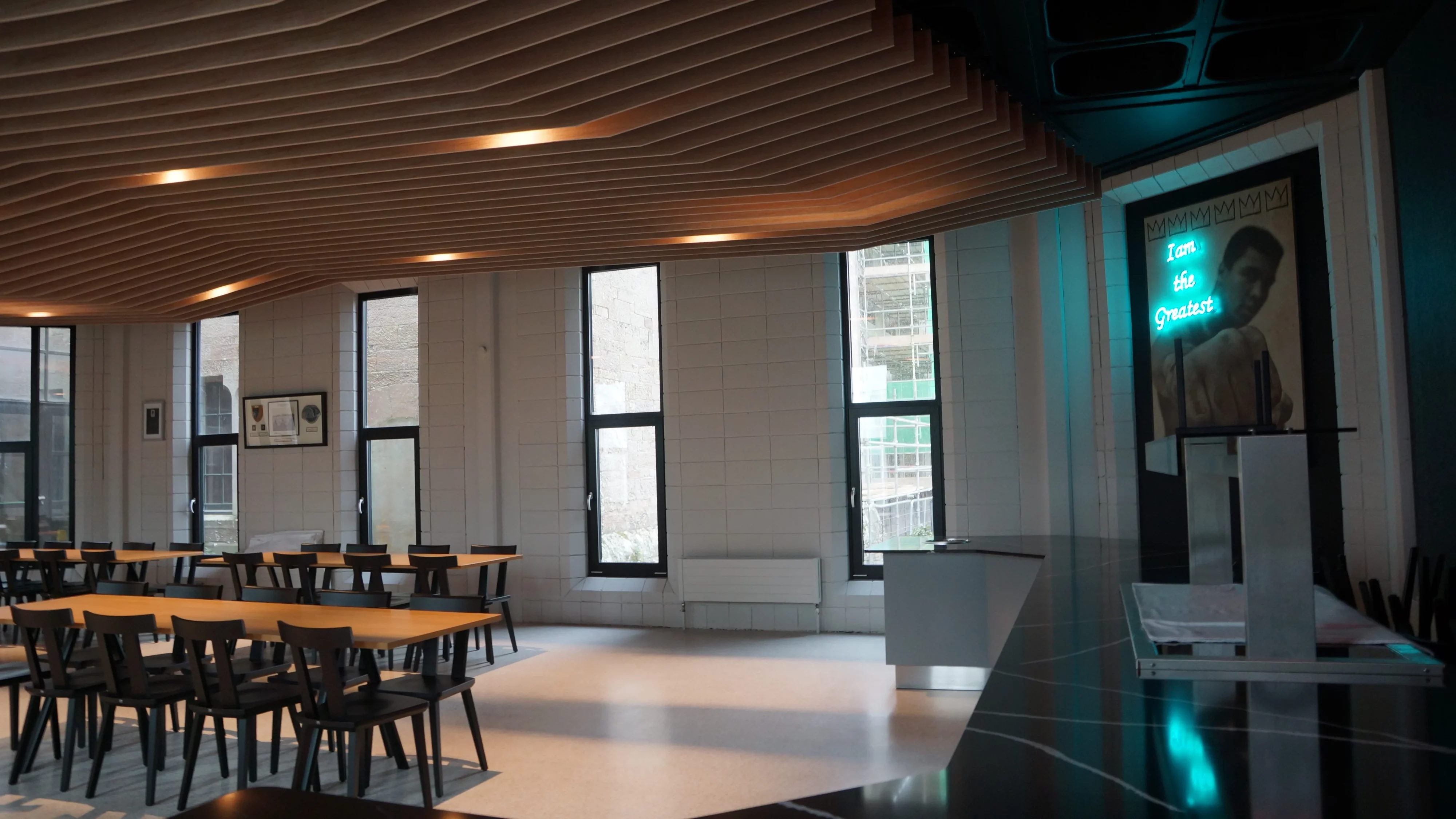

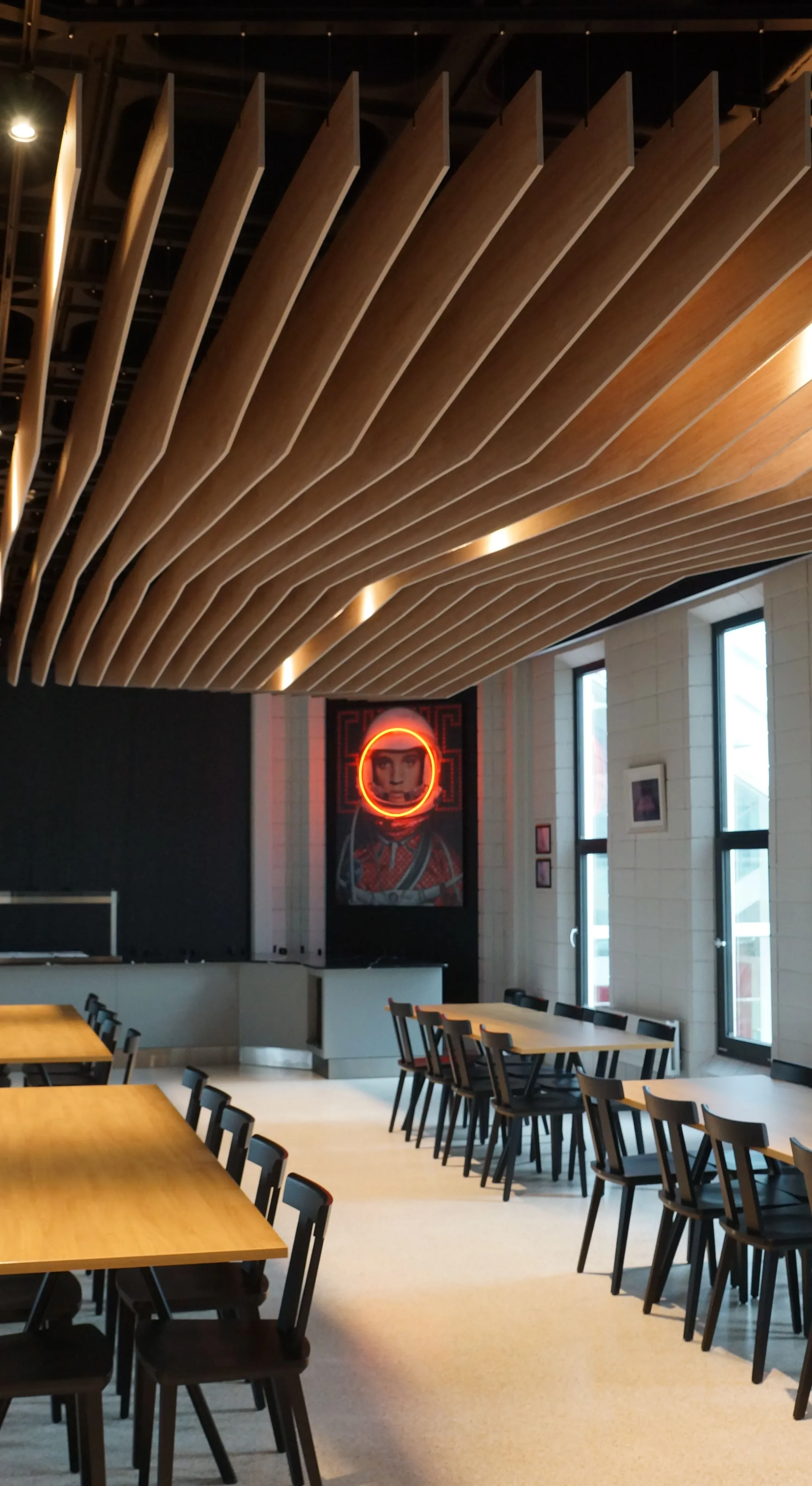

Vibe Calmtone Fins, crafted from sustainable, compressed polyester, are vertical free-hanging panels that offer acoustic and thermal insulation, along with impact resistance.

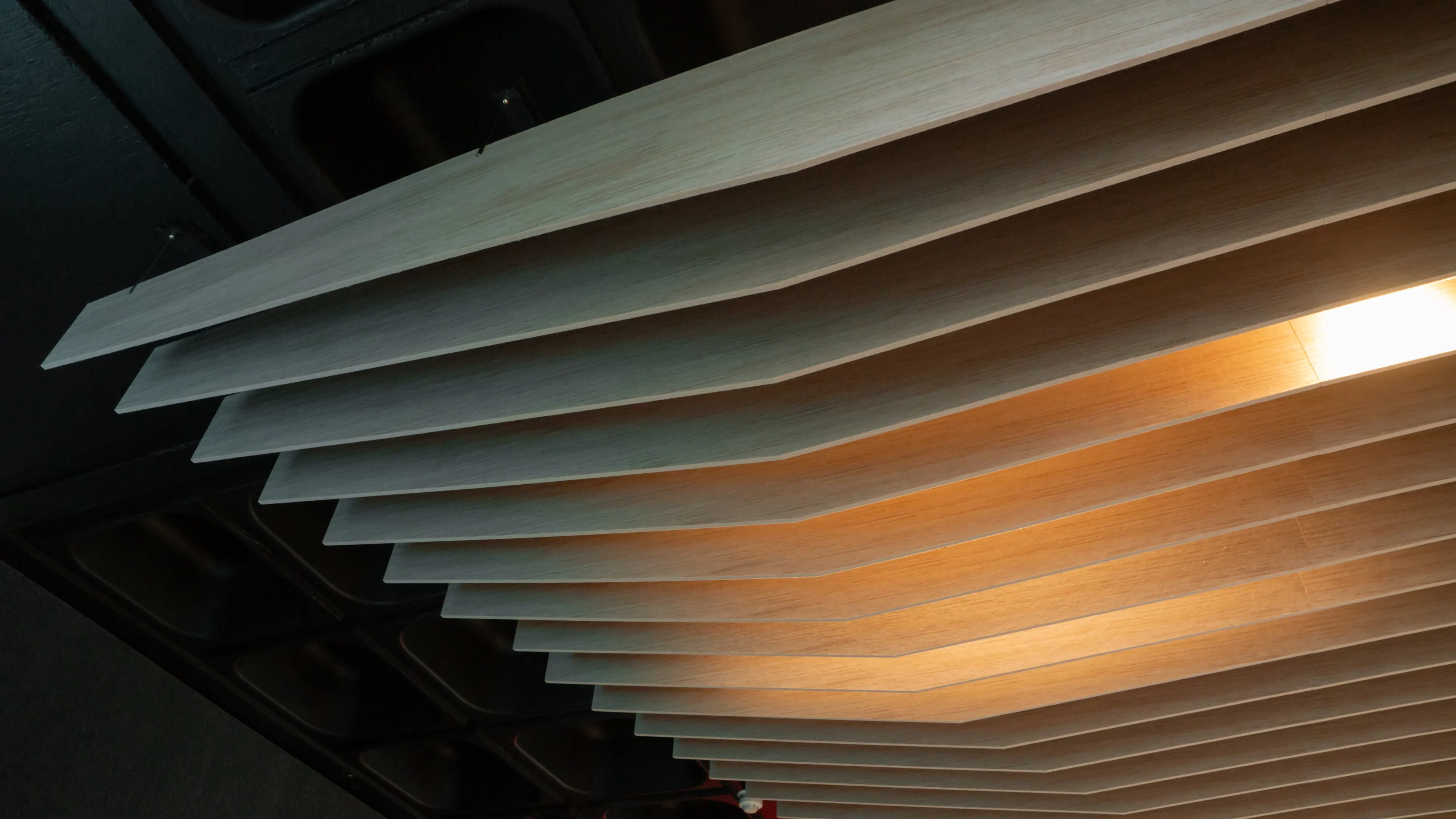

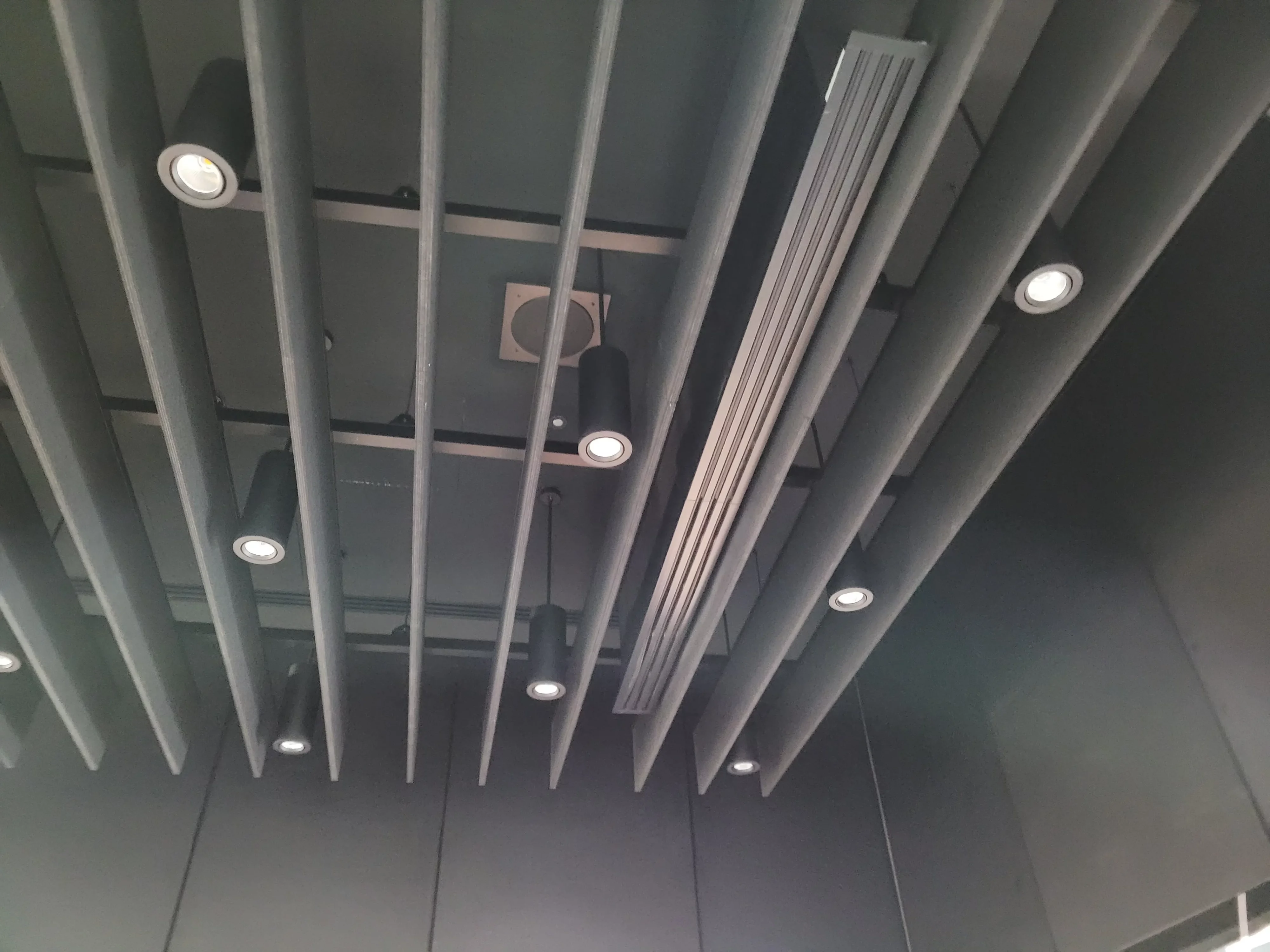

Their unique downward-leading edge design seamlessly integrates efficient lighting systems.
Customisable with in-house printed designs, they are ideal for open-plan spaces with limited wall availability.
Our team of experts are ready to help you design and implement a customised acoustic solution that meets your specific needs.
| Dimensions | Available in two depths 12mm and 24mm. Panel size: 2800mm x 1200mm. |
|---|---|
| Density | 12mm: 2.4 kg/m² or 24mm: 3.5 kg/m² |
| Materials | 100% Polyester Fiber (PET) – 65% recycled material |
| Installation System | Direct fix to the wall or on battens |
| Microbial Performance | ASTM G21 – 15 Growth rating: 0 (No growth). |
| Acoustic Resistance | 12mm: 0.45, 0.80 24mm: 0.75, 0.95 |
|---|---|
| Thermal Resistance | RO.82 (@15°) |
| VOC Concentration | 0.009 mg/m3 (7 days) |
| Water Vapor Absorption | ASTM C1104 / C1104-13a Test conditions: 49°C, 95%RH Water vapor absorbed and adsorbed after 4 days: 0.4% by weight |
| Impact Resistance | ISO 7892:1988 |
| Colour Fastness | ISO 105-X12:2016 Dry rating: 4-5 (Highest = 5) Wet rating: 4-5 (Highest = 5) |
| Fire Resistance Classification | |
|---|---|
| ISO 9705: Classification | Group 1-S, AS |
| ISO 9705 – 2003 Classification | Group 1 |
| EN13501-1:2007+A1:2009 Classification | B – s2, d2 |
| 12mm | Class D NRC 0.45 Direct Fix Class B NRC 0.80 with 50mm Air Gap |
| 24mm | Class C NRC 0.75 Direct Fix Class B NRC 0.75 with 50mm Air Gap |
| 40mm | Class C NRC 0.75 Direct Fix Class B NRC 0.75 with 50mm Air Gap |
| Dimensions | Available in two depths 12mm and 24mm. Panel size: 2800mm x 1200mm. |
|---|---|
| Density | 12mm: 2.4 kg/m² or 24mm: 3.5 kg/m² |
| Materials | 100% Polyester Fiber (PET) – 65% recycled material |
| Installation System | Direct fix to the wall or on battens |
| Microbial Performance | ASTM G21 – 15 Growth rating: 0 (No growth). |
| Acoustic Resistance | 12mm: 0.45, 0.80 24mm: 0.75, 0.95 |
|---|---|
| Thermal Resistance | RO.82 (@15°) |
| VOC Concentration | 0.009 mg/m3 (7 days) |
| Water Vapor Absorption | ASTM C1104 / C1104-13a Test conditions: 49°C, 95%RH Water vapor absorbed and adsorbed after 4 days: 0.4% by weight |
| Impact Resistance | ISO 7892:1988 |
| Colour Fastness | ISO 105-X12:2016 Dry rating: 4-5 (Highest = 5) Wet rating: 4-5 (Highest = 5) |
| Fire Resistance Classification | |
|---|---|
| ISO 9705: Classification | Group 1-S, AS |
| ISO 9705 – 2003 Classification | Group 1 |
| EN13501-1:2007+A1:2009 Classification | B – s2, d2 |
| 12mm | Class D NRC 0.45 Direct Fix Class B NRC 0.80 with 50mm Air Gap |
| 24mm | Class C NRC 0.75 Direct Fix Class B NRC 0.75 with 50mm Air Gap |
| 40mm | Class C NRC 0.75 Direct Fix Class B NRC 0.75 with 50mm Air Gap |
