Acoustic Wall Panels

Yes, we offer comprehensive supply and installation services for acoustic panels and related acoustic treatment solutions.

• Foam Basotect®:
  • Unique Properties: Lightweight, open-cell melamine foam renowned for exceptional fire resistance and acoustic properties.
  • Performance Ratings:
    • Fire: Class O at 25 mm.
    • Acoustic: Class D at 25 mm, Class B at 50 mm.
  • Ideal Use: Best for ceiling applications where no fabric face is needed.
  • Sustainability: 100% recyclable manufacturing scraps.
  • Manufacturer Details: Produced in Germany, density of 9kg per m³.

• Mineral Fibre:
  • Unique Properties: High absorption capabilities and dual functionality as a pinboard.
  • Performance Ratings:
    • Fire: Class A to EN 13 501-1.
    • Acoustic: Class C at 25 mm, Class A at 50 mm.
  • Ideal Use: Specifically suited for office environments.
  • Specifications: Maximum height of 2700 mm, density of 94kg per m².

• Polyester:
  • Unique Properties: Made from over 60% recycled PET bottles, offering excellent fire resistance and acoustic performance.
  • Performance Ratings:
    • Fire: Euro Class B at EN 13501.
    • Acoustic: Class C at 25 mm, Class A at 50 mm.
  • Ideal Use: Particularly effective for ceiling installations in open areas.
  • Specifications: Density of 2.5kg per m².

• 100% Natural Biobased Material:
  • Unique Properties: Formaldehyde-free, devoid of harmful VOCs, and designed with regenerative practices.
  • Performance Ratings:
    • Fire: BS EN 13501-1:2018 Class B.
    • Acoustic: Class C at 23 mm, Class A at 47 mm.
    • Thermal Conductivity: λ 0.041W/m2K.
  • Ideal Use: Optimal for environmentally conscious projects.
  • Specifications: Available in panel sizes of 1200mm x 600mm, density of 2.5kg per m².

• Over 2000 Pantone Colours: Allows design teams to select from a vast palette to perfectly match specific needs and branding.

• Automated Technology: Ensures that custom colours can be produced with no minimum run requirements, offering greater flexibility and accessibility for all clients.

• Locally Sourced Materials: Reduces carbon emissions and supports local suppliers and communities, enhancing the sustainability of our products.

• Heritage: A fifth-generation family business in Donegal, Ireland, with over 150 years of experience.
• Product Quality: Known for luxurious fabrics like wool, linen, and cashmere, celebrated for their quality, strength, and timeless elegance.
• Sustainability: Focus on natural, biodegradable, and renewable fibres, responsibly sourced within the EU.
• Benefits to Designers: Offers fabrics that enhance both the aesthetic and functional qualities of architectural designs, making them a preferred choice for projects that value tradition and sustainability.

• Industry Leadership: A front-runner in sustainable textile production.
• Environmental Commitment: Prioritises sustainability at every production stage, with a strong focus on traceability and minimal environmental impact.
• Benefits to Architects: Provides versatile and innovative fabric solutions that support creative and environmentally responsible design, ideal for projects that require customised and sustainable textile applications.

• Product Range: Offers vibrant, high-quality fabrics combining traditional craftsmanship with contemporary sustainability practices.
• Eco-friendly Practices: Committed to modern eco-friendly standards while preserving time-honoured techniques.
• Benefits to Designers: Avoca’s commitment to vivid aesthetics and sustainability makes their fabrics highly suitable for dynamic and visually engaging spaces.

• Specialisation: Known for premium wallcoverings, upholstery, and curtain fabrics.
• Sustainability Focus: Utilises green electricity and gas, reduces waste, and employs water-based printing techniques.
• Recycled Materials: Features products like vinyl wallcoverings and upholstery fabrics made from 100% recycled plastic waste.
• Benefits to Architects: Vescom’s products offer robust environmental credentials combined with functional benefits, making them ideal for high-traffic areas in commercial and hospitality environments.

• Luxury and Innovation: Offers luxurious fabrics with a commitment to sustainable manufacturing and design innovation.
• Sustainable Practices: Uses high-quality recycled yarns and supports sustainable management practices.
• Social Responsibility: Engages in initiatives like the NatureProtect collection, adhering to the cradle-to-cradle principle for sustainable cycles.
• Benefits to Designers: Jab Anstoetz’s rich selection enables designers to apply cutting-edge trends and sustainability in their work, making it a top choice for those aiming to combine luxury with environmental stewardship.

For projects requiring stringent compliance with safety and environmental standards, the choice of panel matters.
Hemp Acoustic Panels meet BS EN 13501: Class B-s1,d0 fire safety and E1 Class for low emissions, making them suitable for eco-sensitive projects.

Wood Grain™ Panels also comply with BS EN 13501-1 Class B-s1-d0, balancing safety with aesthetic needs.
In industrial environments, Galvanised™ Panels, made from durable 0.76mm galvanized steel, offer essential fire and impact resistance.

Choosing the right panels affects both longevity and upkeep. Hemp Acoustic Panels are moisture-resistant and thermally stable, ideal for varying climates. Wood Grain™ Panels provide enhanced durability through customizable options, suited for aesthetic-focused interiors. For high-traffic areas, Galvanised™ Panels stand out for their corrosion resistance and easy maintenance, ensuring long-term performance with minimal upkeep.

Bass™ Wall Panel System Options:

• 25 mm Panels: Achieve Class C acoustic performance.
• 50 mm Panels: Reach Class A acoustic performance, ideal for projects demanding the highest level of sound absorption.

Vellum Panels:

• Density Range: From 1400g to 2400g per m², offering flexibility to meet varying acoustic needs.
• Suitability: Can be tailored to projects with less stringent acoustic requirements.

Choosing the Right Panel:

• High Absorption Needs: Opt for 50 mm Bass™ panels with Class A performance.
• Moderate Improvement: Both 25 mm Bass™ panels and Vellum panels could be suitable, depending on other considerations like aesthetics and installation preferences.

Bass™ Wall Panels:

• Customisation Capabilities: Offers in-house printing and laser etching for bespoke graphics and images on stretch fabric material.

• Core Material Options: Choose from mineral fibre, polyester, or foam, each providing distinct thermal and fire-resistant properties.

• Ideal For: Projects requiring specific branding or visual elements integrated directly onto the panels.

Vellum Wall Panels:

• Material Variety: Options include Filz Wool Felt (100% wool), PET Felt (96% recycled polyester), or Cork.

• Finishes: Over 100 finishes available, catering to a broader aesthetic range.

• Ideal For: Projects prioritising natural or recycled materials and diverse textural finishes.

Adaptability:

• Both systems can accommodate curved or angled walls and integrate switches, sockets, and other services, offering flexibility for various architectural challenges.

Choosing the Right Panel:

• Graphic Customisation: If the project places a greater emphasis on custom graphics, Bass™ is the preferred choice.

• Material Diversity and Sustainability: For those valuing material variety and eco-friendliness, Vellum panels are recommended.

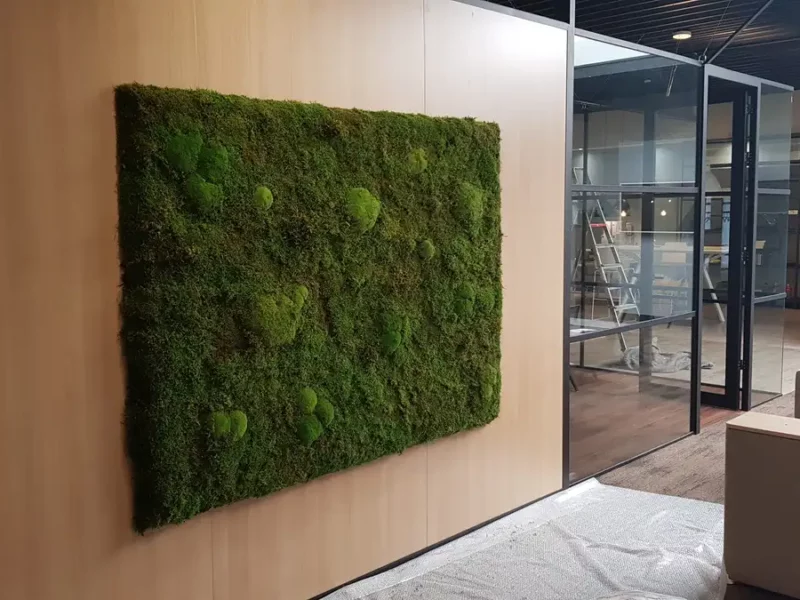

Quiet Moss Panels:

• Acoustic Resistance: Offers Class C with a 20mm substrate and Class A with a 40mm substrate, ideal for spaces requiring varying degrees of sound control.

Quiet Cork Panels:

• Sound Absorption: Follows EN ISO 354 standards, achieving sound absorption coefficients between w 0.15-0.06, suitable for moderately noisy environments.

Quiet Biophilic Panels:

• Natural Dampening: While focused on visual and environmental enhancements, these panels provide natural sound dampening, perfect for creating serene, distraction-free areas.

Quiet Moss Panels:

• Comprised of naturally preserved moss and a recycled PVC backing. The preservation process uses a safe, drinkable fluid, ensuring no harmful chemicals are involved.

Quiet Cork Panels:

• Crafted from 100% biodegradable and recyclable materials, including natural cork and post-industrial recycled cork, supporting the circular economy.

Air Quality and Eco-Impact:

• Both options significantly enhance indoor air quality. Quiet Moss is effective in reducing VOC gases, while Quiet Cork holds a Greenguard Gold A+ certification for exceptionally low chemical emissions.

Quiet Moss Panels:

• Highly adaptable for bespoke design needs, available in thicknesses of 20mm and 40mm. They can be shaped to fit unusual contours and integrated with decorative elements such as maps and clocks.

Quiet Cork Panels:

• While offered in standard sizes, these panels can be precisely cut to meet specific design requirements, ensuring a perfect fit for any space.

Design Versatility:

• Quiet biophilic panels extend the customisation possibilities even further with made-to-order options, allowing for the inclusion of a variety of plant types and creative designs, catering to both aesthetic and functional needs.

Quiet Moss Panels:

• Versatile installation methods include direct fixing to the wall, mounting via magnets or Z clips, or encasement in a stylish frame, facilitating easy installation and future adjustments.

Quiet Cork and Quiet Biophilic Panels:

• Typically installed using a direct adhesive method, which is straightforward and efficient, suitable for both temporary and permanent setups.

Adaptability to Architectural Features:

• All systems are designed to accommodate complex architectural features, including curved or angled walls, ensuring seamless integration into any design scheme.

Duet Panels – Tailored Acoustic Design:

• Layering Options: Mix and match Groove and Rib textures to customise depth and tactile sensations, ideal for projects needing adaptable design features.
• Sculptural Effects: Utilise three-dimensional designs with protruded or recessed panel sections for projects where aesthetic integration is as crucial as acoustic functionality.
• Acoustic Zoning: Adjust layer compositions to fine-tune acoustics for specific areas within a space, working with acoustic specialists to achieve the desired sound dynamics.
• Integrated Elements: Incorporate lighting fixtures to highlight the unique dual-layered structure, enhancing both the visual and acoustic qualities of your environment.
• Eco-Friendly Materials: Panels are crafted from recycled materials, supporting sustainable architecture, making them suitable for eco-conscious project requirements.

Calmtone Panels – Optimal Acoustic Performance:

• Sound Absorption: High NRC rating of 0.45 ensures effective noise reduction, perfect for environments that demand high sound absorption and durability.
• Seamless Design Integration: Available in 24 neutral shades with a subtle linear pattern, these panels are designed to easily integrate into various architectural themes.
• Environmental Sustainability: Made from 100% recycled polyester fibre, aligning with environmentally sustainable practices for modern architectural designs.
• Installation Flexibility: Mount using direct fix, rail system, or magnetic methods, offering versatile installation options for different structural needs.
• Advanced Customisation: Techniques include deep processing for tailored shapes, state-of-the-art cutting, 3D printing enhancements, and laser precision for intricate designs, catering to unique design requirements.

• Acoustic Performance: Both Sonar™ and Wave™ panels are engineered to excel in sound management. Sonar™ panels come with Class C (25mm) and Class A (50mm) ratings, effective in various environments from quiet meeting rooms to bustling public spaces. Wave™ panels also boast a Class A rating, optimised for wide frequency ranges, perfect for both intimate settings and larger venues. The installation versatility with Sonar™’s Z clips and magnets and Wave™’s adaptability for curved and angled walls makes them ideal for bespoke architectural designs.

• Sustainability: These panels are at the forefront of eco-friendly design. Sonar™ utilises recycled Irish MDF, promoting waste reduction, while Wave™ is made with 70% local materials, including recycled foam scraps and PET felt from plastic bottles. Both lines offer biodegradable fabric options, enhancing the environmental credentials of any project.

• Safety Standards: Sonar™ and Wave™ panels are not only acoustically superior but also safe. They comply with the BS EN 13501-1 fire ratings (B-s1, d0), ensuring they meet the high safety requirements necessary for modern construction.
