Calmtone

Modular PET Acoustic Panel

2000+ Colours, Custom Designs & Thermal Resistance

Calmtone modules and panels are available in a variety of colours and shapes, allowing for creative customisation. Calmtone stands out as an exceptionally versatile material. Composed of 65% recycled PET, it offers broad possibilities for realising innovative projects with unique designs.

Explore our range of cutting-edge wall panelling options, and let us help you create a space that’s truly extraordinary.



DIMENSIONSPanel size: 2800 mm x 1200 mm.
Available in two depths: 12 mm and 24 mm
DENSITY12mm: 2.4 kg/m²
24mm: 3.5 kg/m²
MATERIALS100% Polyester Fiber (PET) – 65% recycled material
INSTALLATION SYSTEMDirect fix to the wall or on battens
MICROBIAL PERFORMANCEASTM G21 – 15 Growth rating: 0 (No growth).
ACOUSTIC RESISTANCE12 mm – 0.45, 0.80
24 mm – 0.75, 0.95
THERMAL RESISTANCERO.82 (@15°)
VOC CONCENTRATION0.009 mg/m3 (7 days)
WATER VAPOUR ABSORPTIONASTM C1104 / C1104-13a Test conditions:
49°C, 95%RH Water vapour absorbed and adsorbed after 4 days: 0.4% by weight
IMPACT RESISTANCEISO 7892:1988
COLOUR FASTNESSISO 105-X12:2016
Dry rating: 4-5 (Highest = 5)
Wet rating: 4-5 (Highest = 5)
ISO 9705Classification: Group 1-S, AS
ISO 9705 – 2003Classification: Group 1
EN13501-1:2007+A1:2009B – s2, d2.
12mmClass D NRC 0.45 Direct Fix

Class B NRC 0.80 50mm Air Gap

24mmClass C NRC 0.75 Direct Fix

Class B NRC 0.75 50mm Air Gap

  • Available in two depths 25 and 50 mm.

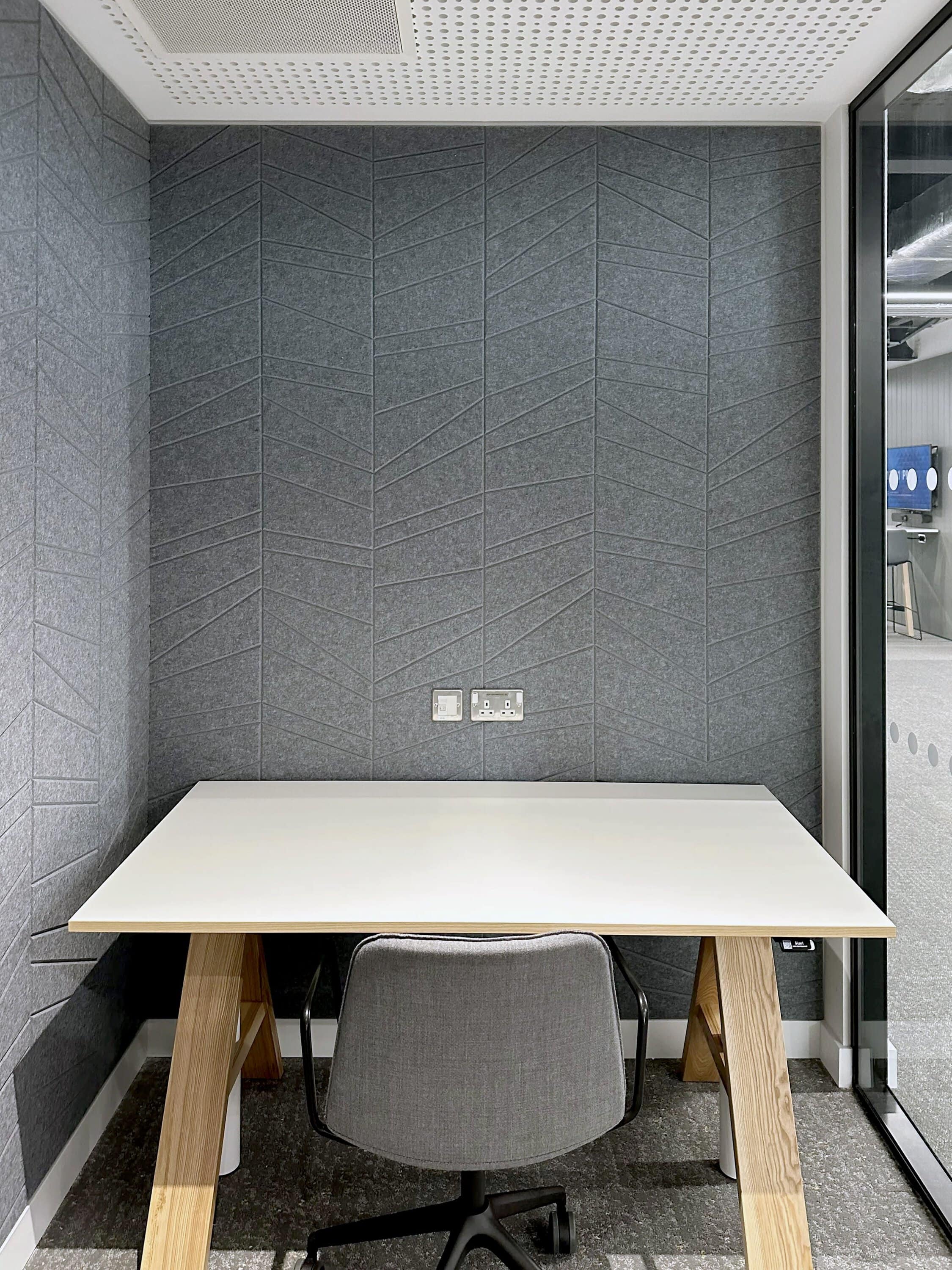

  • Incorporates switches, sockets and services.
  • Can be built around curved or angled walls.
  • Lighting can be added into the system.
  • Use textiles from brand-leading manufacturers

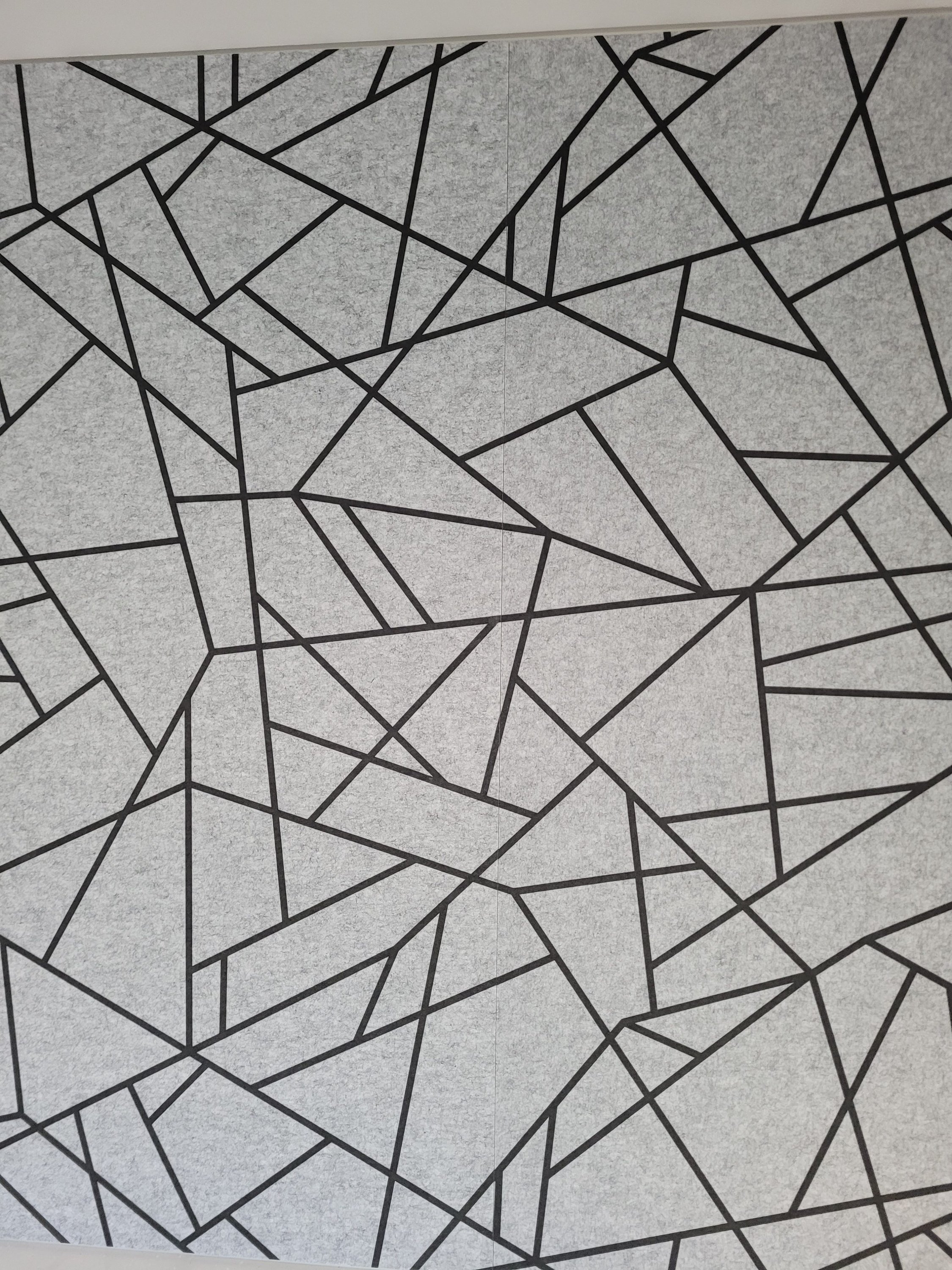

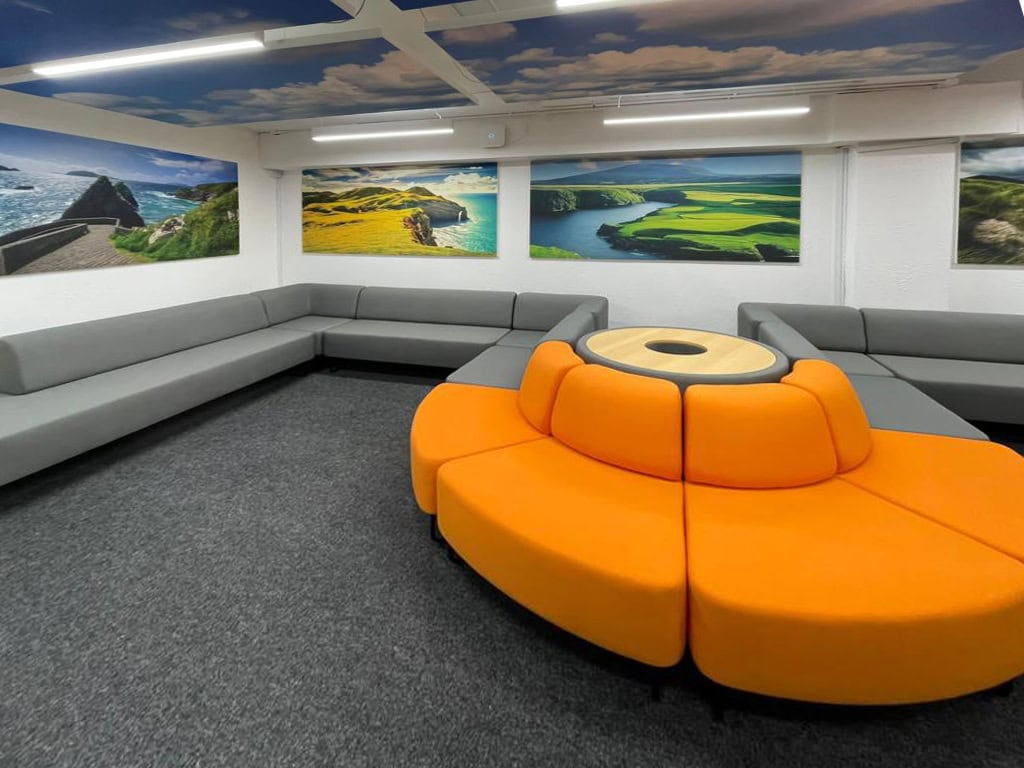

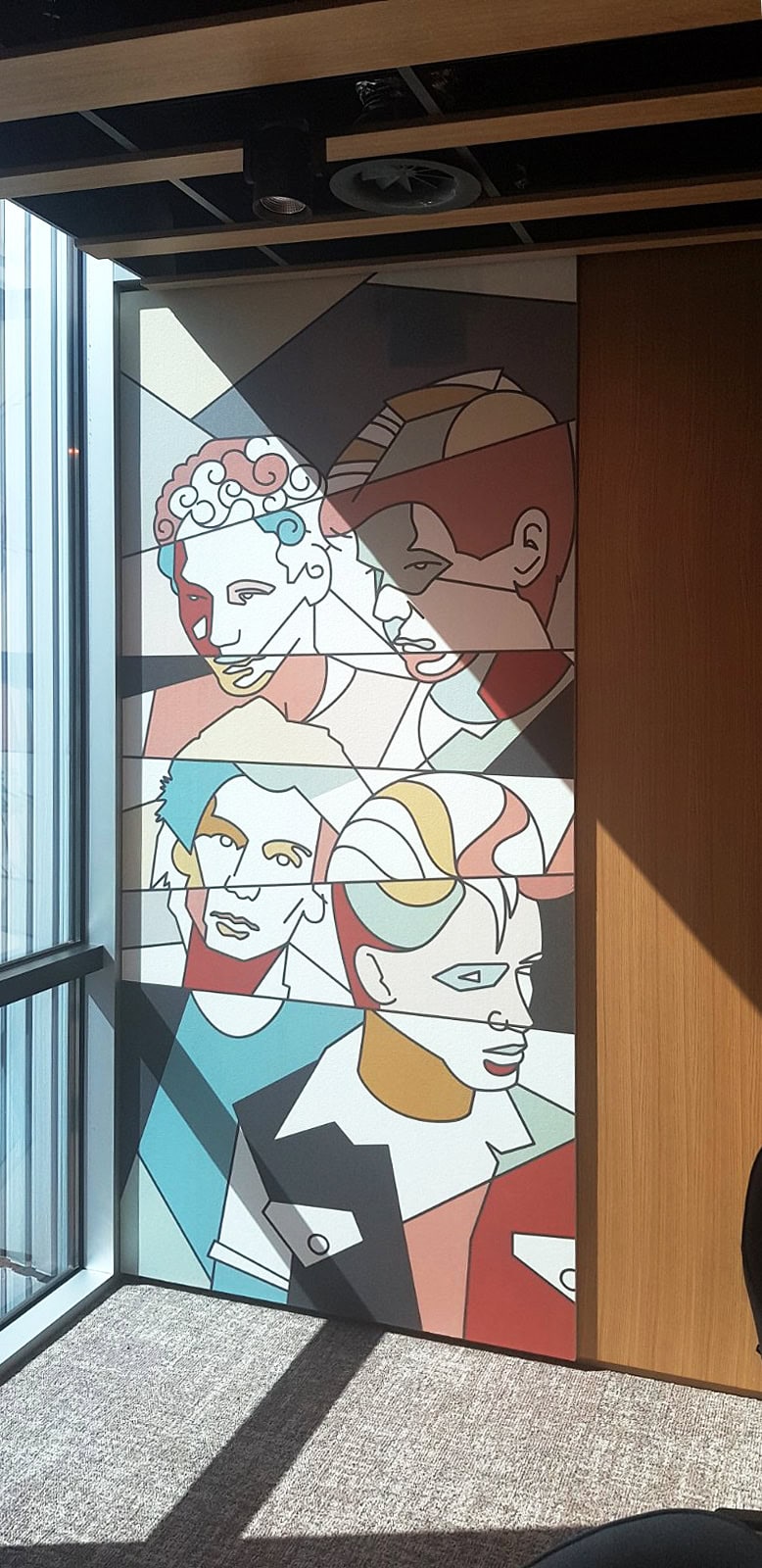

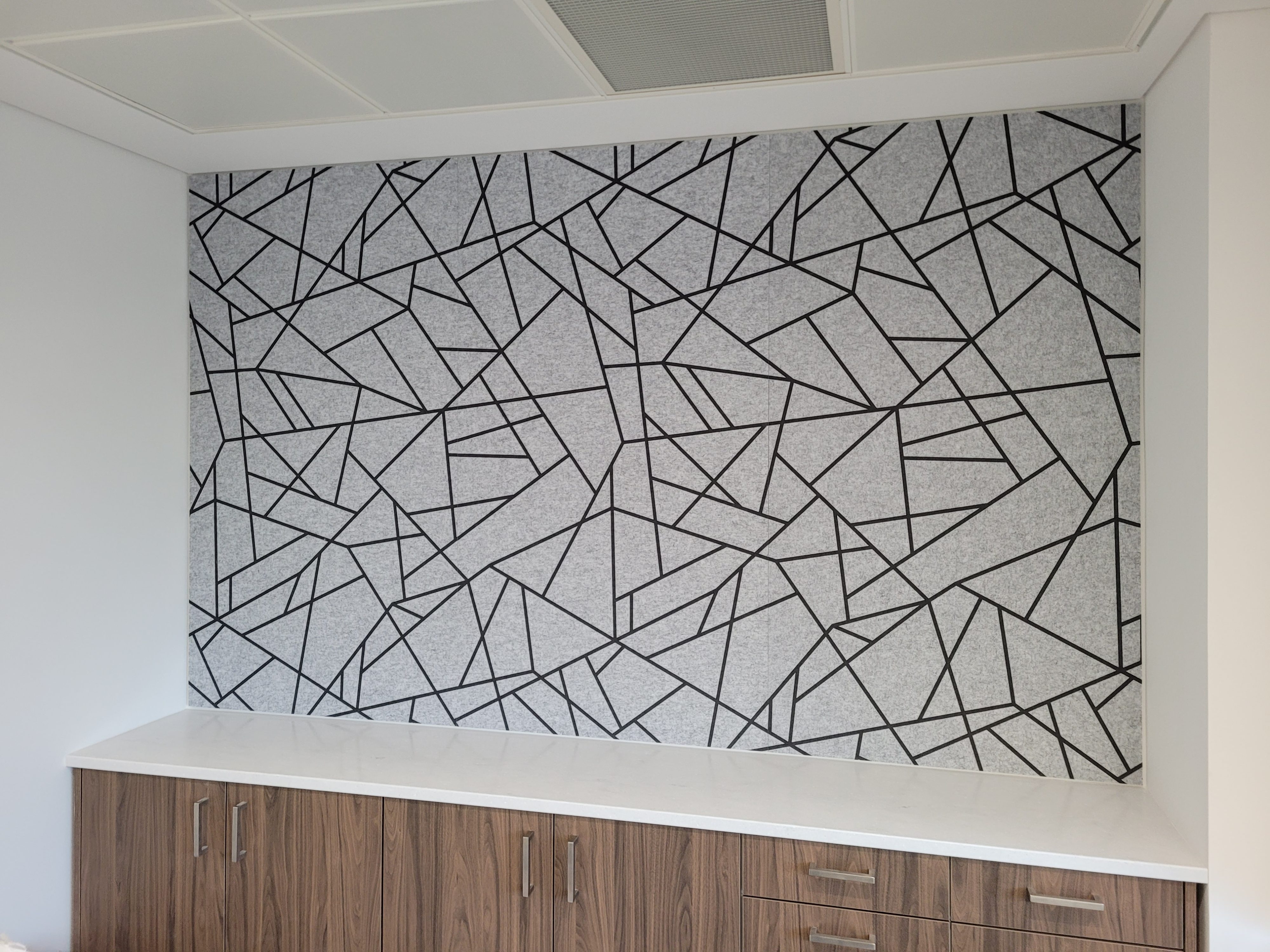

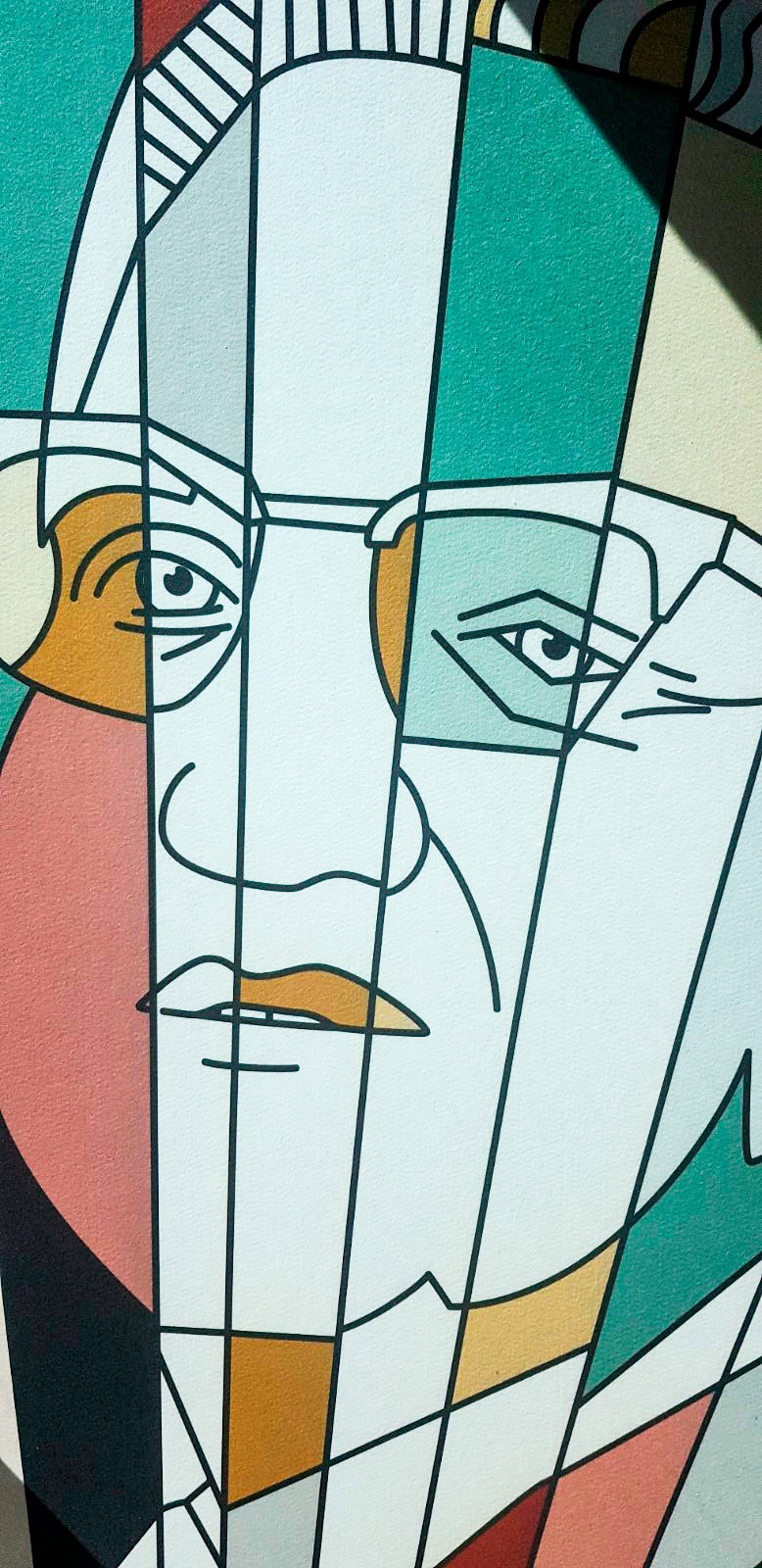

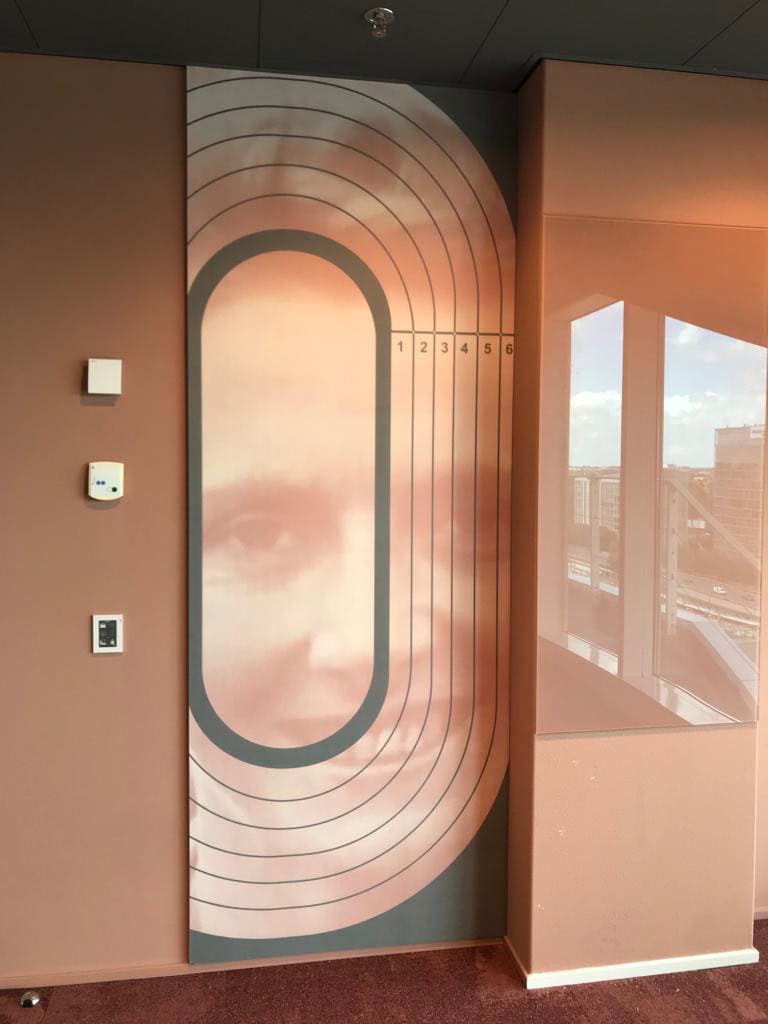

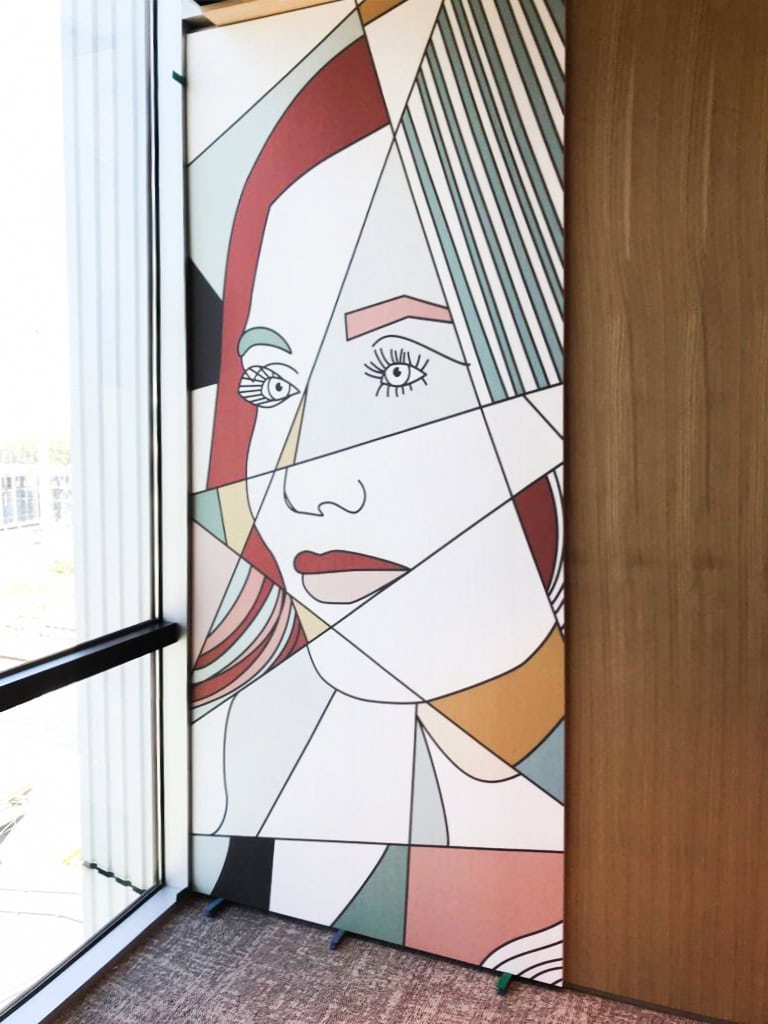

  • In-house printing of images or graphics.

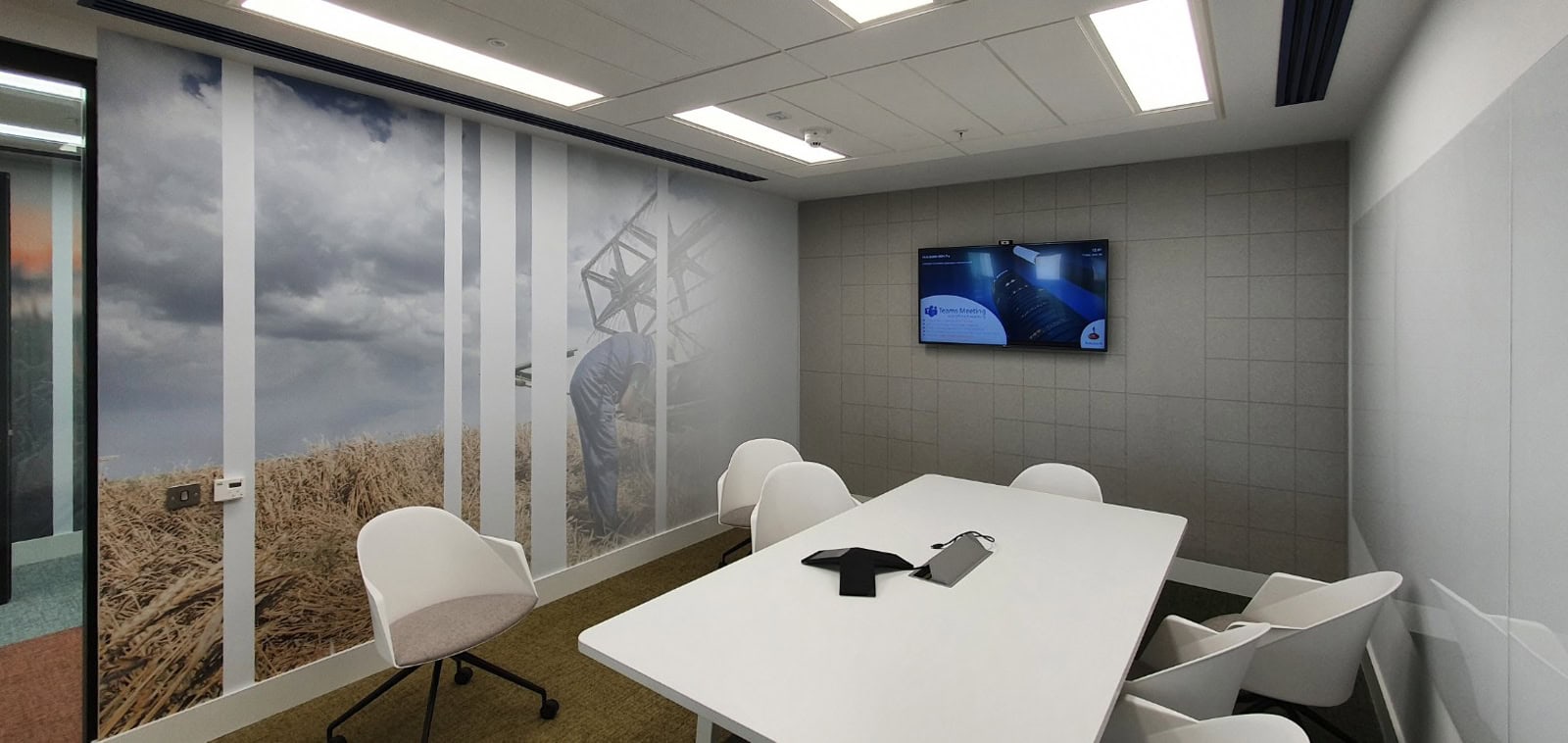

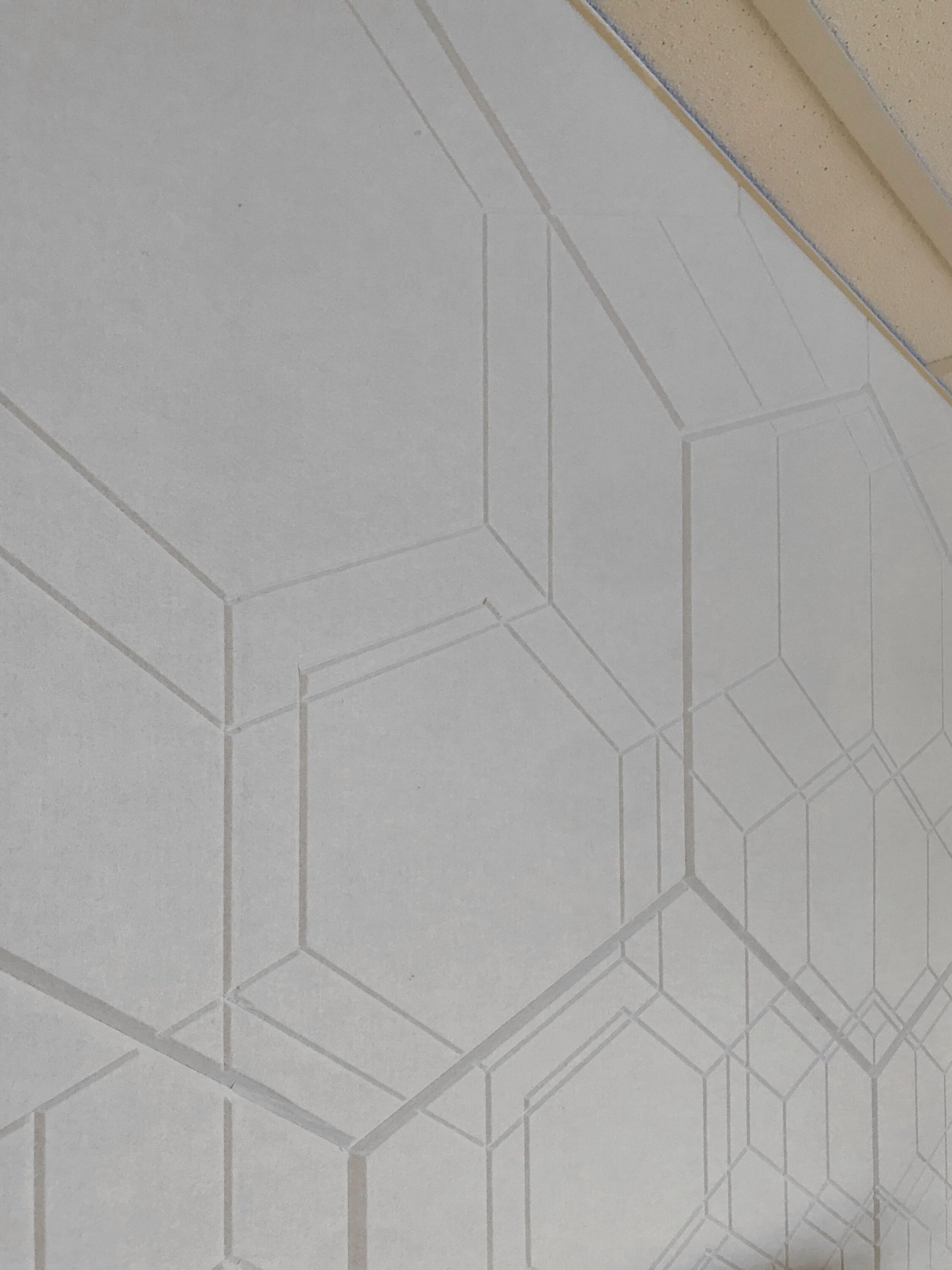

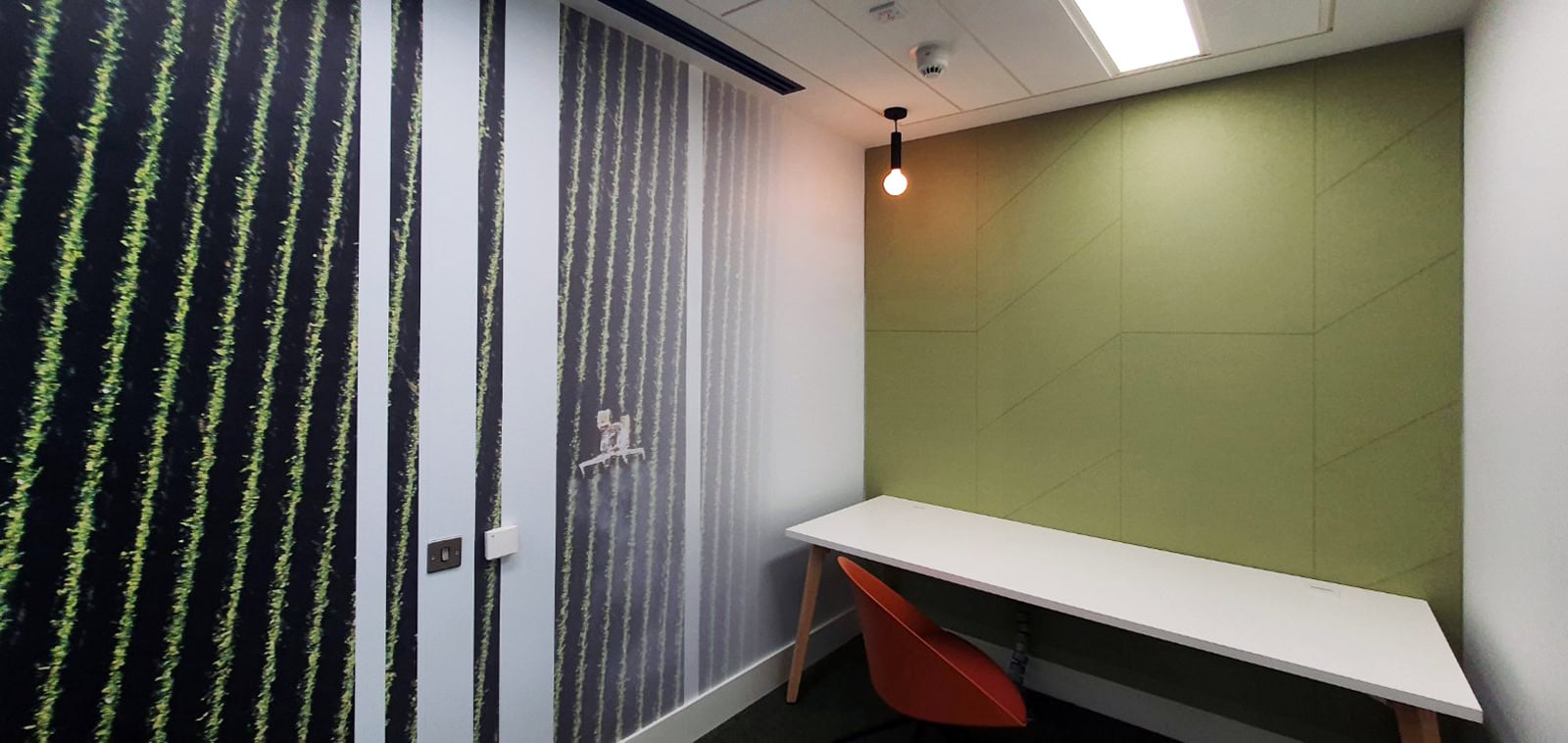

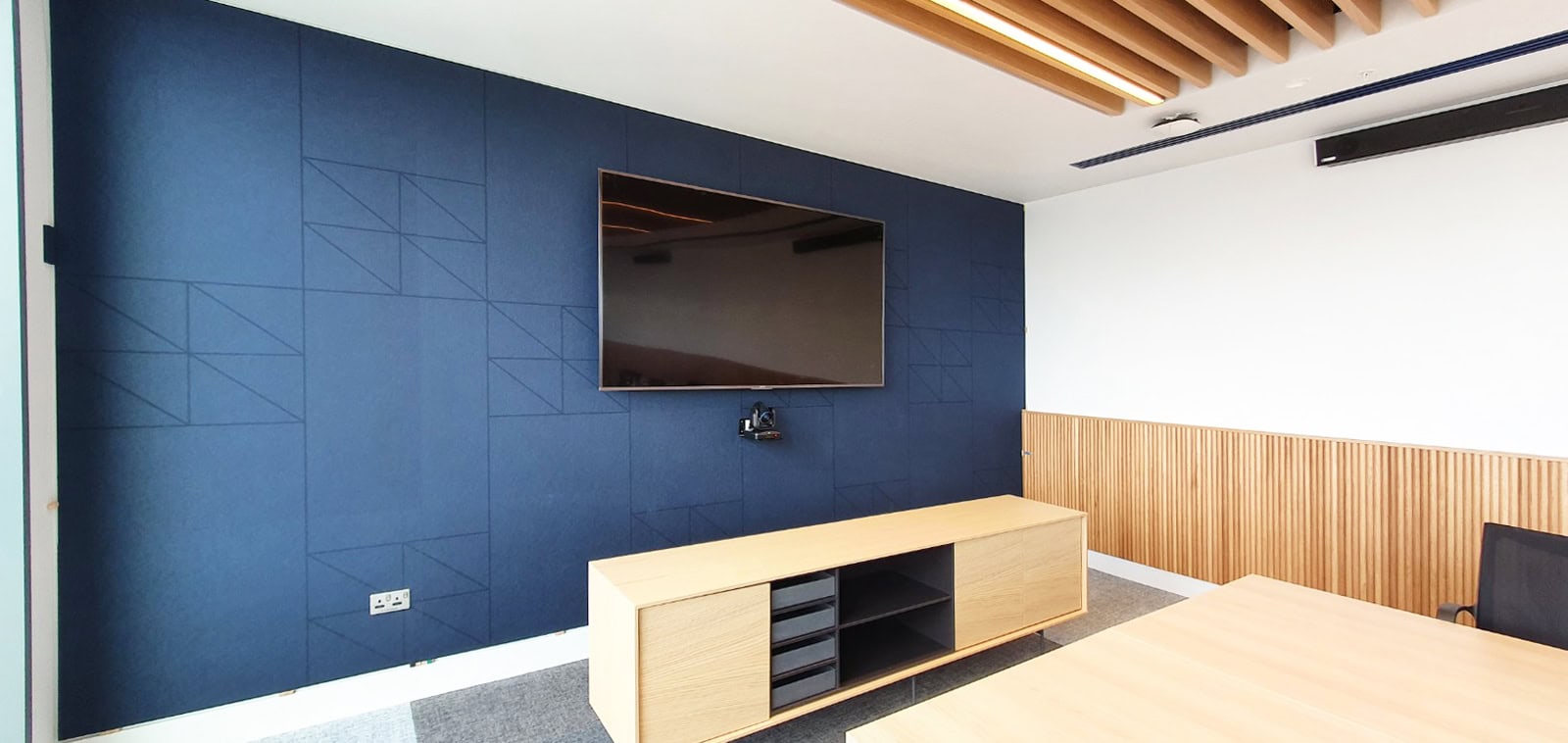

  • In-house laser etch graphics.
  • Anti-Microbial Performance on request.

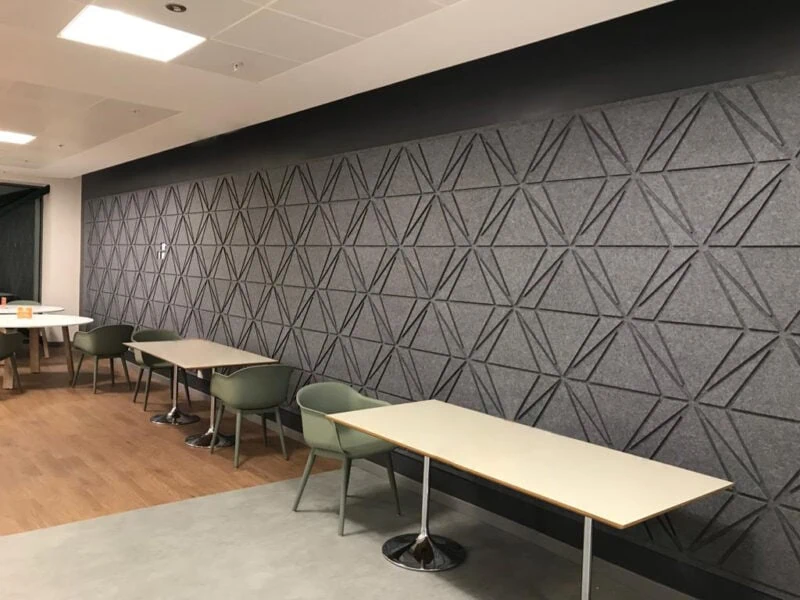

  • Commercial Offices

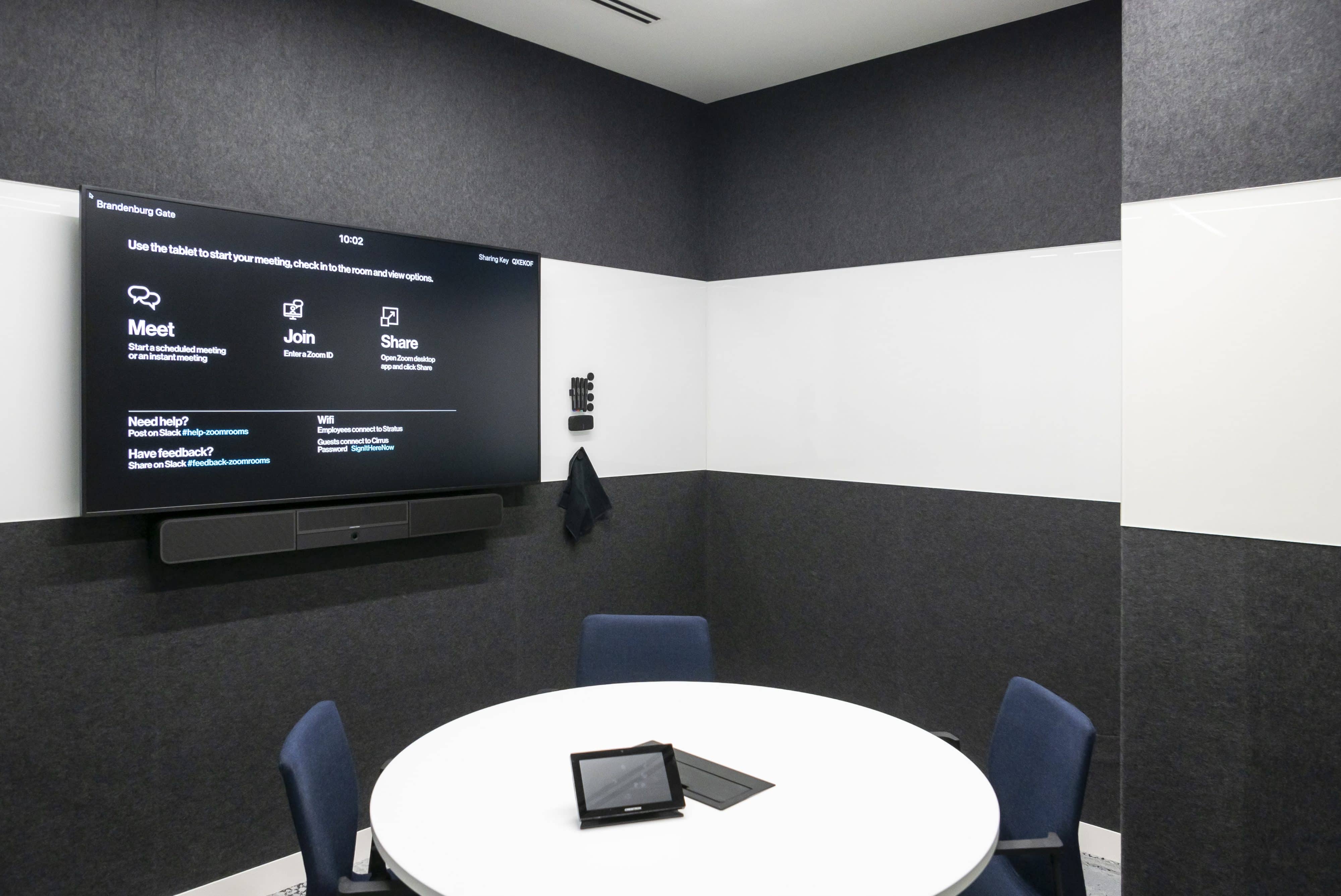

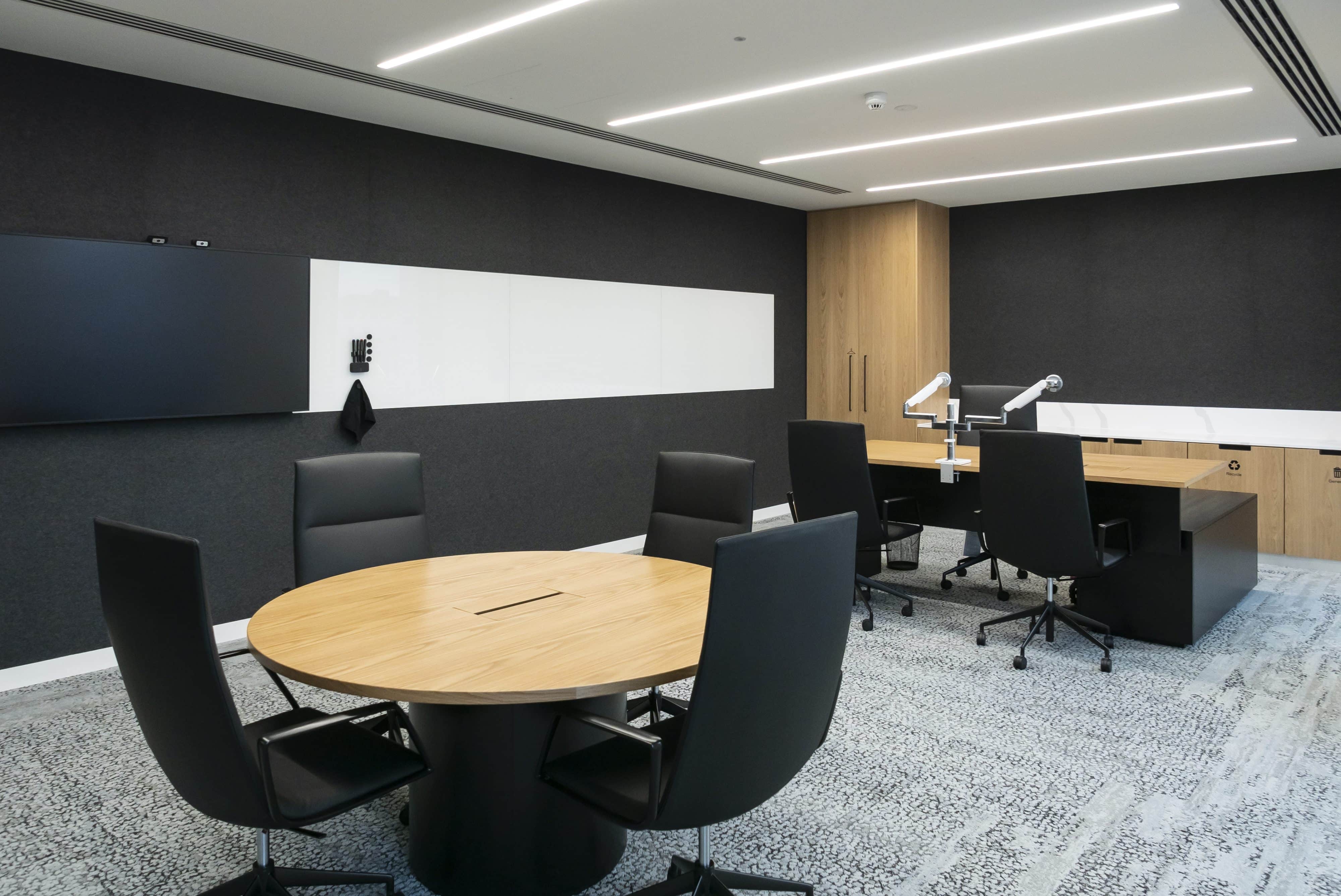

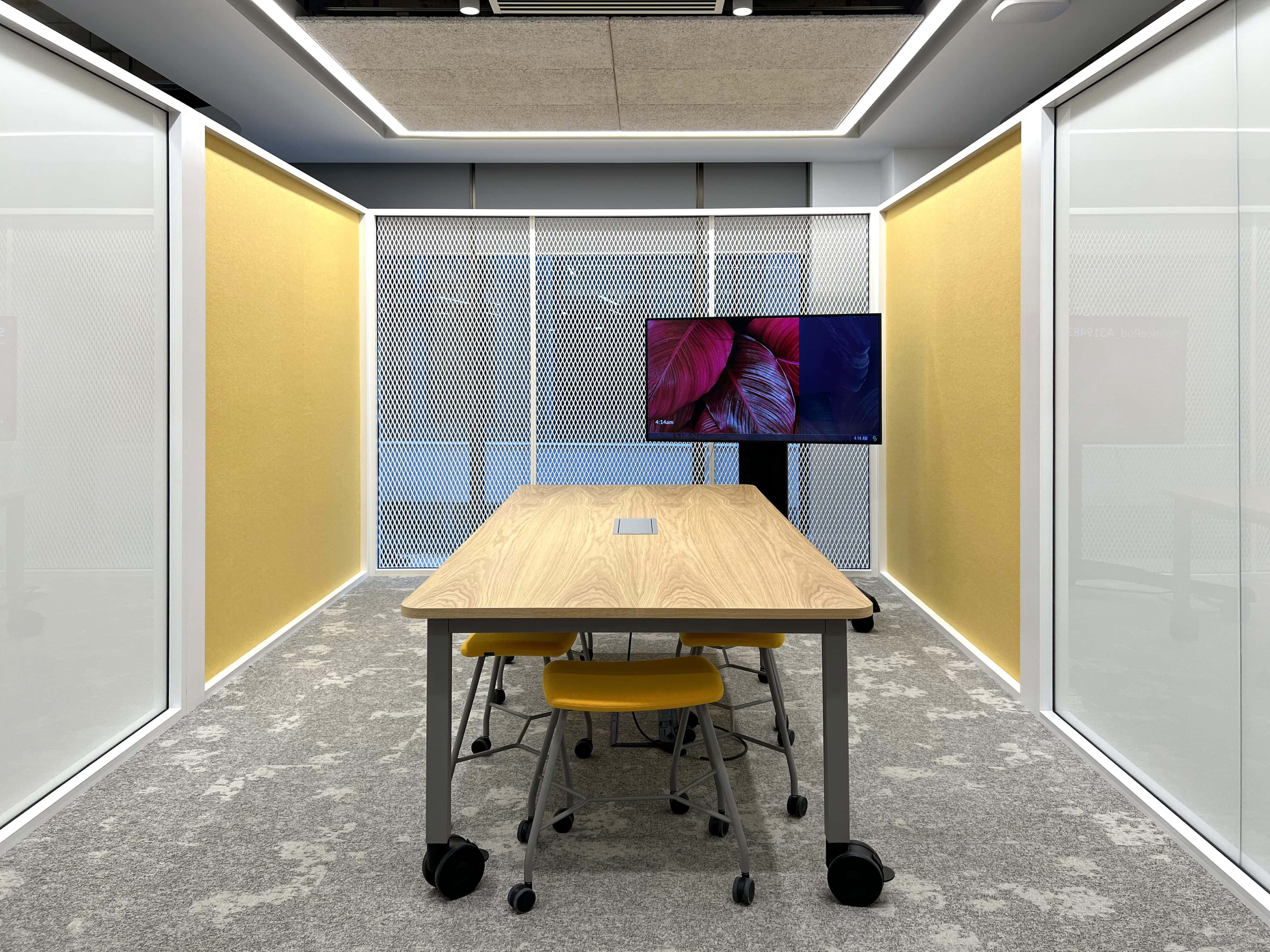

  • Meeting Rooms
  • Theatres
  • Home Cinemas
  • Recording Studios
  • Restaurants
  • Banks
  • Libraries
DIMENSIONSPanel size: 2800 mm x 1200 mm.
Available in two depths: 12 mm and 24 mm
DENSITY12mm: 2.4 kg/m²
24mm: 3.5 kg/m²
MATERIALS100% Polyester Fiber (PET) – 65% recycled material
INSTALLATION SYSTEMDirect fix to the wall or on battens
MICROBIAL PERFORMANCEASTM G21 – 15 Growth rating: 0 (No growth).
ACOUSTIC RESISTANCE12 mm – 0.45, 0.80
24 mm – 0.75, 0.95
THERMAL RESISTANCERO.82 (@15°)
VOC CONCENTRATION0.009 mg/m3 (7 days)
WATER VAPOUR ABSORPTIONASTM C1104 / C1104-13a Test conditions:
49°C, 95%RH Water vapour absorbed and adsorbed after 4 days: 0.4% by weight
IMPACT RESISTANCEISO 7892:1988
COLOUR FASTNESSISO 105-X12:2016
Dry rating: 4-5 (Highest = 5)
Wet rating: 4-5 (Highest = 5)
ISO 9705Classification: Group 1-S, AS
ISO 9705 – 2003Classification: Group 1
EN13501-1:2007+A1:2009B – s2, d2.
12mmClass D NRC 0.45 Direct Fix

Class B NRC 0.80 50mm Air Gap

24mmClass C NRC 0.75 Direct Fix

Class B NRC 0.75 50mm Air Gap

  • Available in two depths 25 and 50 mm.
  • Incorporates switches, sockets and services.
  • Can be built around curved or angled walls.
  • Lighting can be added into the system.
  • Use textiles from brand-leading manufacturers
  • In-house printing of images or graphics.
  • In-house laser etch graphics.
  • Anti-Microbial Performance on request.
  • Commercial Offices
  • Meeting Rooms
  • Theatres
  • Home Cinemas
  • Recording Studios
  • Restaurants
  • Banks
  • Libraries
