Sonar · Acoustic Panel

The Sonar system is a hanging, removable wall system that provides unparalleled flexibility and style. Whether you prefer a hidden or external frame, this demountable system can be easily tailored to meet all your needs. Choose from a vast selection of fabrics and felts, each offering its own unique texture and aesthetic.

Ready to experience the full spectrum of sound control? Check out our wide range of acoustic wall panels and transform your space into a haven of creativity and productivity.

Dimensions

Panel size H 2800 mm – W 1220mm.

Track – Structure Frame

It is made with MDF processing ‘waste’ from the Irish sawmill sector, in the form of wood chips.

Locally sourced with FSC certification.

100% assembled in Ireland and the install team is based locally in Ireland.

Standard panel depths are 25, 40 & 50mm, bespoke depths available on request.

With Sonar Cells we can offer either a hidden or external frame. This is a demountable system, which can be removed from the wall if you require to access services from behind the panel. It is transportable.

Core

We have a selection of 3 different core infills.

Mineral core fiber, Polyester, and Foam.

Fabric

The Sonar system is designed to allow leading manufacturers of acoustic textiles and fabrics to be used inside the system.

Dimensions

Panel size H 2800 mm – W 1220mm.

Track – Structure Frame

It is made with MDF processing ‘waste’ from the Irish sawmill sector, in the form of wood chips.

Locally sourced with FSC certification.

100% assembled in Ireland and the install team is based locally in Ireland.

Standard panel depths are 25, 40 & 50mm, bespoke depths available on request.

With Sonar Cells we can offer either a hidden or external frame. This is a demountable system, which can be removed from the wall if you require to access services from behind the panel. It is transportable.

Core

We have a selection of 3 different core infills.

Mineral core fiber, Polyester, and Foam.

Fabric

The Sonar system is designed to allow leading manufacturers of acoustic textiles and fabrics to be used inside the system.

Acoustic resistance

25mm Class C – 50mm Class A

Installation system

Z clips and magnets.

Thermal Conductivity

0.039 W/mK Mineral Core Fiber, 0.035 W/

mk Foam, 0.040 W/mK Polyester.

The Acoustic Mineral Fiber contained within the Vision Vibe Acoustic system complies with the BS EN 13501-1 A1-s1-d0. For the foam and polyester the rating is BS EN 13501-1 Class B s1 d0.

We recommend a selection of the stretch fabric coverings which meet the requirements of BS EN 13501-1 rating B-S1-d0.

We also will provide additional fire retardancy treatments to achieve this.

  • Available in two depths 25 and 50 mm.

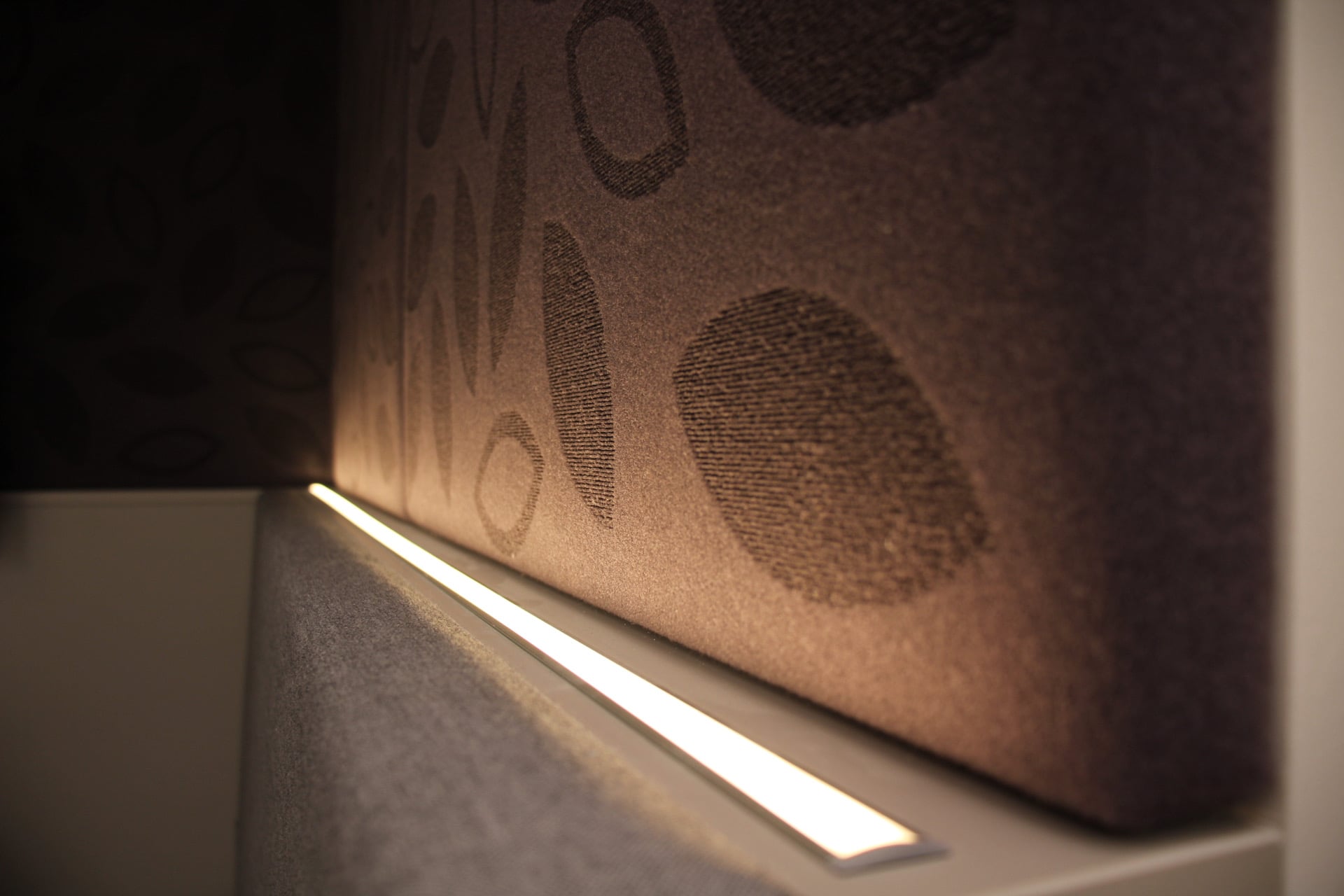

  • Lighting can be added into the system.
  • Use textiles from brand leading manufacturers
  • In-house printing of images or graphics.

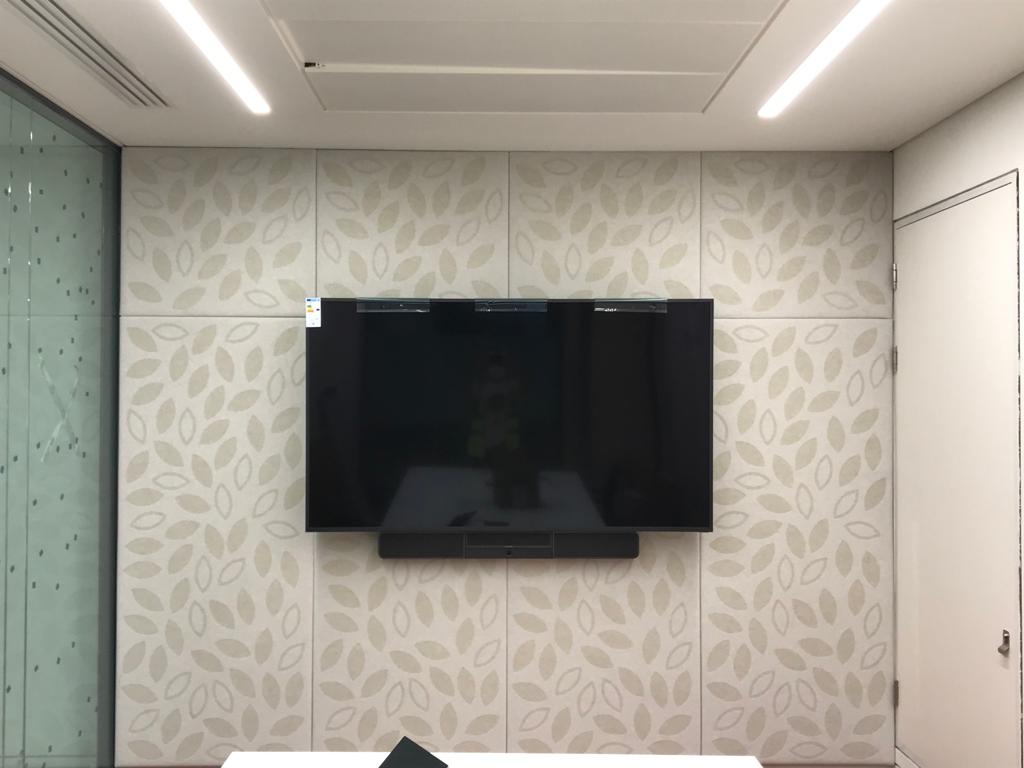

  • In-house laser etch graphics.
  • Anti-Microbial Performance on request.
  • Commercial Offices
  • Meeting Rooms
  • Theatres
  • Home Cinemas
  • Recording Studios
  • Restaurants
  • Banks
  • Libraries

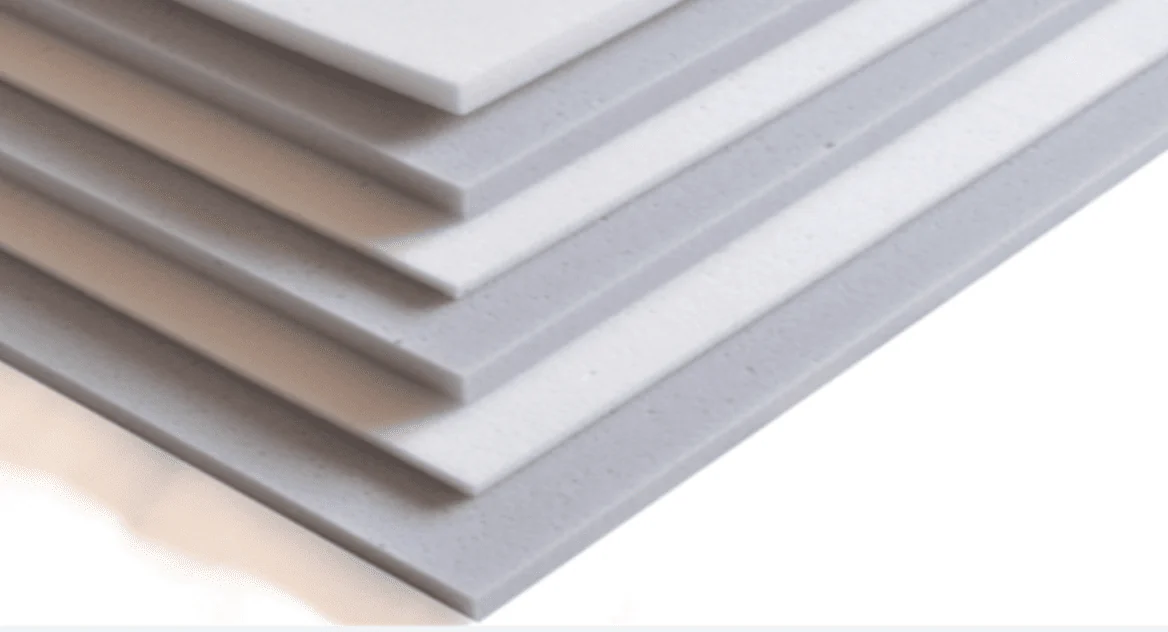

Core 1: Foam

Basotect® is a lightweight, open cell melamine foam. It exhibits excellent fire resistance properties and as such does not flame or emit toxic fumes. Due to its excellent thermal and acoustic properties it has countless applications including acoustic wall and ceiling panels. This acoustic foam reaches Class O fire rating at 25 mm. It is a great performing acoustic core reaching Class D sound absorption at 25 mm and Class B at 50 mm.

The panels can be made as large as 2700 mm x 1200 mm and are perfect for floor to ceiling applications.

Due to the foams consistent colour it can be used without a fabric face as a simple solution for ceiling application.

Foam is manufactured in Germany – 100% of the foam scraps from manufacture of Vibe systems are recycled and reusable.

Density: 9kg per m³.

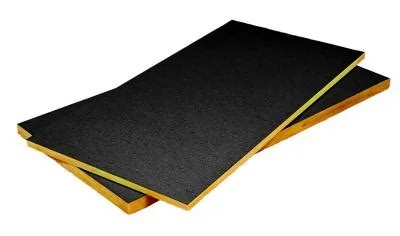

Core 2: Mineral fiber

The mineral core is our highest-absorbing acoustic panel. Due to its rigidity many offices tend to use this as multi functional product by also using it as a pinboard.

As seen in the table below it reaches Class C sound absorption at 25mm and Class A at 50 mm.

The Core achieves Class A fire rating to EN 13 501-1.

This core also comes in 2700 mm height so it is perfect for most floor to ceiling applications.

Density: 94kg per m².

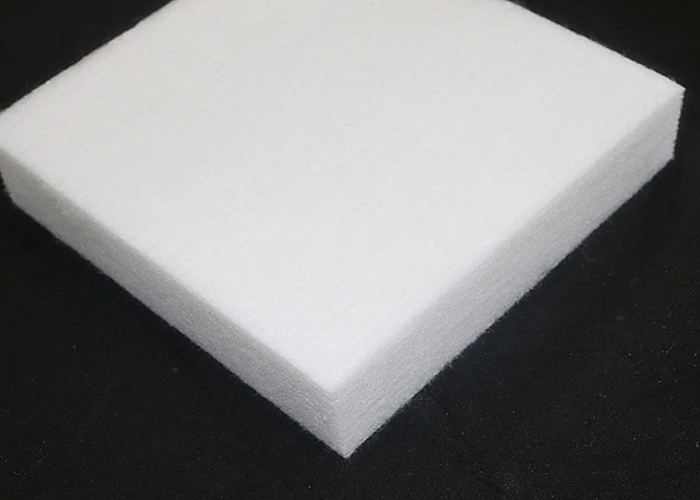

Core 3: Polyester

The polyester is a lightweight fiber product. It exhibits excellent fire resistance properties and as such does not flame or emit toxic fumes and is made from 60%+ recycled PET bottles. Due to its excellent thermal and acoustic properties, it has countless applications including acoustic baffles and acoustic wall panels.

Similar to the mineral core the polyester reaches Class C sound absorption at 25mm and Class A and 50mm. The core achieves Euro Class B at EN 13501 We use our polyester core in our ceiling applications as it can then still be used over restaurant areas unlike mineral core absorbers.

Density: 2.5kg per m².
