Wool depths options. Polyester depths options. Cork depth between 2mm & 12mm options. Incorporates switches, sockets and services. Can be built around curved or angled walls. Lighting can be added into the system. More than 100 finishes availabe. In-house printing of images or graphics. In-house laser etched or grooved graphics. Anti-Microbial Performance on request.

Commercial Offices Meeting Rooms Theatres Home Cinemas Recording Studios Restaurants Banks Libraries

Vellum · Acoustic Panel

Transform your walls into a work of art with Vellum, a premium felt wall covering boasting a self-adhesive backing that glides seamlessly into place, creating a profound sense of depth and warmth in any space. Our extensive colour palette and expert designers offer endless possibilities to etch intricate patterns onto the Vellum, elevating your walls to new heights of elegance and sophistication.

Achieve breathtaking 3D effects with the addition of multiple layers or laser-etching the felt, creating bespoke designs that capture the essence of your unique style. Experience the ultimate in luxury and craftsmanship with our premium acoustic wall panels.

Documentation

Project: DocuSign

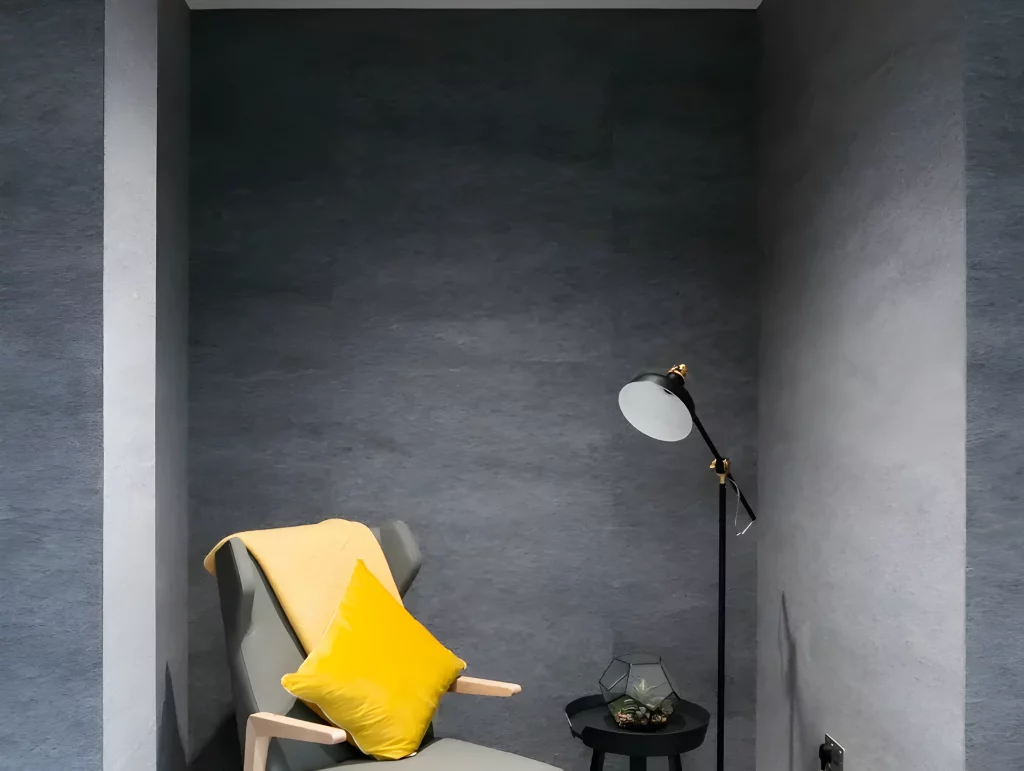

Vision produced and installed the Vellum system in seating pods and cubicle to give a soft warm finish to the areas. The system was a 3mm felt direct fixed to the walls in the seating pods. The glass magnetic whiteboards where incorporated into the acoustics.

Project: DocuSign

Test

Dimensions

750mm – 1800mm width, tile, or roll format.

Tolerance +2mm. 2mm –5 mm depth.

Density

1400g to 2400g per mÇ

Materials

Filz Wool Felt (100% Wool)

PET Felt, (96% post-consumer polyester-Global Recycle Standard [GRS]) Cork.

Specifications

Dimensions

750mm – 1800mm width, tile, or roll format.

Tolerance +2mm. 2mm –5 mm depth.

Density

1400g to 2400g per mÇ

Materials

Filz Wool Felt (100% Wool)

PET Felt, (96% post-consumer polyester-Global Recycle Standard [GRS]) Cork.

Acoustic Performance

Acoustic resistance

Filz Wool felt = α w bis 1,0.

Installation system

Direct fix to the wall. Wall-to-wall and/or floor-to-ceiling.

Light Fastness

Wool Felt 4-6 (ISO 1-8), LEED v4, VOC free.

Fire Rating

Filz Wool Felt BS-EN13501-1 Class B s1 d1

Cork and PET felt BS EN 13501-1 Class B.

Customisation

Wool depths options.
Polyester depths options.
Cork depth between 2mm & 12mm options.
Incorporates switches, sockets and services.
Can be built around curved or angled walls.
Lighting can be added into the system.
More than 100 finishes availabe.
In-house printing of images or graphics.
In-house laser etched or grooved graphics.
Anti-Microbial Performance on request.

Applications

Finish 1: Recycled Polyester Felt

• 96% recycled post-consumer felt polyester.

• Available in 2mm (600gms/m²) or 4mm (1200gms/ m2) width.

• Available in 55 colours.

Polyester felt is a decorative material that helps to absorb sound in your home/office environment.

Available in a diverse colour palette, the material supports a variety of interior applications. The felt can be used in the following ranges Vision Vellum, Duet, Wave, and Forest products.

The polyester felt comes 750mm wide rolls which can be stuck to the wall.

The fabric, available in both 2mm (600g/m2) and 4mm (1200g/m2) thicknesses, consists of 96% recycled polyester post-consumer.

Finish 2: Wool Felt

100% wool felt Manufactured in Germany.
Available in 2mm (600gms/m2), 3mm (840gms/m2) or 5mm(1400gms/m2) width.
Can be backed by cork or polyester.
Available in 75 colours.

Wool felt is a 100% decorative wool material that has excellent sound and heat-insulating properties. The comprehensive colour collection enables individual design solutions.

The felt can be used on the following ranges Vision Vellum, Duet, Wave and Forest products.

The wool felt comes 750mm wide rolls which can be stuck to the wall. Wool felt is biodegradable, compostable, and has inherent durability and resilience.

Finish 3: Cork

Portuguese cork from trees that absorb 3-5 times more carbon than other countries.

Available in any size from 2mm to 12mm thicknesses
Available in roll or tile format

Finish 4: Fabric

The system can be personalised and customised to a variety of colours and sizes using different fabrics from all the leading acoustic manufacturers.
