Wave · Acoustic Panel

This corrugated wave effect provides the top end in absorption and acoustic ability. Wave enables our clients to integrate different colour, fabrics and textiles closely together.

Wave is 70% made from local materials and 100% assembled in Ireland. The clever simulation of this pattern provides the best acoustic rating of any product and is an excellent addition to any wall.

Check out our range of acoustic wall panels today and discover how you can transform your space with improved acoustics!

Vibe Wave is made from 3 main materials and manufactured in Ireland.

Structure

It is made with MDF processing ‘waste’ from the Irish sawmill sector, in the form of wood chips.

Locally sourced with FSC certification.

100% assembled in Ireland and the install team is based locally in Ireland.

Dimensions

3000mm height max, 50mm-150mm width, 50mm-100mm depth.

Core

Foam is manufactured in Germany – 100% of the foam scraps from the manufacture of Vibe systems are recycled and reusable.

Fabric

The Wave System is designed to allow leading manufacturers in acoustic textiles and fabrics to be used inside the system,

PET Felt (96% post-consumer polyester- Global Recycle Standard [GRS]) and Filz Wool Felt (100% Wool).

The fabrics from Avoca and Magee are manufactured locally and 100% biodegradable.

Vibe Wave is made from 3 main materials and manufactured in Ireland.

Structure

It is made with MDF processing ‘waste’ from the Irish sawmill sector, in the form of wood chips.

Locally sourced with FSC certification.

100% assembled in Ireland and the install team is based locally in Ireland.

Dimensions

3000mm height max, 50mm-150mm width, 50mm-100mm depth.

Core

Foam is manufactured in Germany – 100% of the foam scraps from the manufacture of Vibe systems are recycled and reusable.

Fabric

The Wave System is designed to allow leading manufacturers in acoustic textiles and fabrics to be used inside the system,

PET Felt (96% post-consumer polyester- Global Recycle Standard [GRS]) and Filz Wool Felt (100% Wool).

The fabrics from Avoca and Magee are manufactured locally and 100% biodegradable.

Acoustic resistance

Class A

Installation system

Fix to the wall with a bracketing system.

Thermal Rating

0.035 W/mk.

EN 13501-1 Class B

  • Incorporates switches, sockets, and services.
  • Can be built around curved or angled walls.
  • Lighting can be added into the system.
  • Use textiles from brand leading manufacturers
  • In-house laser etch graphics.
  • Anti-Microbial Performance on request.
  • Commercial Offices
  • Meeting Rooms
  • Theatres
  • Home Cinemas
  • Recording Studios
  • Restaurants
  • Banks
  • Libraries

Core: Foam

Basotect® is a lightweight, open cell melamine foam. It exhibits excellent fire resistance properties and as such does not flame or emit toxic fumes. Due to its excellent thermal and acoustic properties, it has countless applications including acoustic wall and ceiling panels. This acoustic foam reaches Class O fire rating at 25 mm. It is a great performing acoustic core reaching Class D sound absorption at 25 mm and Class B at 50 mm.

The panels can be made as large as 2700 mm x 1200 mm and are perfect for floor-to-ceiling applications.

Due to the foams consistent colour it can be used without a fabric face as a simple solution for ceiling application.

Foam is manufactured in Germany – 100% of the foam scraps from the manufacture of Vibe systems are recycled and reusable.

Density: 9kg per m³.

Finish 1: Recycled Polyester Felt

96% recycled post-consumer felt polyester.

• Available in 2mm (600gms/m2) or 4mm (1200gms/ m2) width.

• Available in 55 colours.



Polyester felt is a decorative material that helps to absorb sound in your home/office environment.

Available in a diverse colour palette, the material supports a variety of interior applications.

The felt can be used in the following ranges Vision Vellum, Duet, Wave, and Forest products.

The polyester felt comes 750mm wide rolls which can be stuck to the wall.

The fabric, available in both 2mm (600g/m2) and 4mm (1200g/m2) thicknesses, consists of 96% recycled polyester post-consumer.

Finish 2: Wool Felt

• 100% wool felt Manufactured in Germany.

• Available in 2mm (600gms/m2), 3mm (840gms/m2) or 5mm (1400gms/m2) width.

• Can be backed by cork or polyester.

• Available in 75 colours.

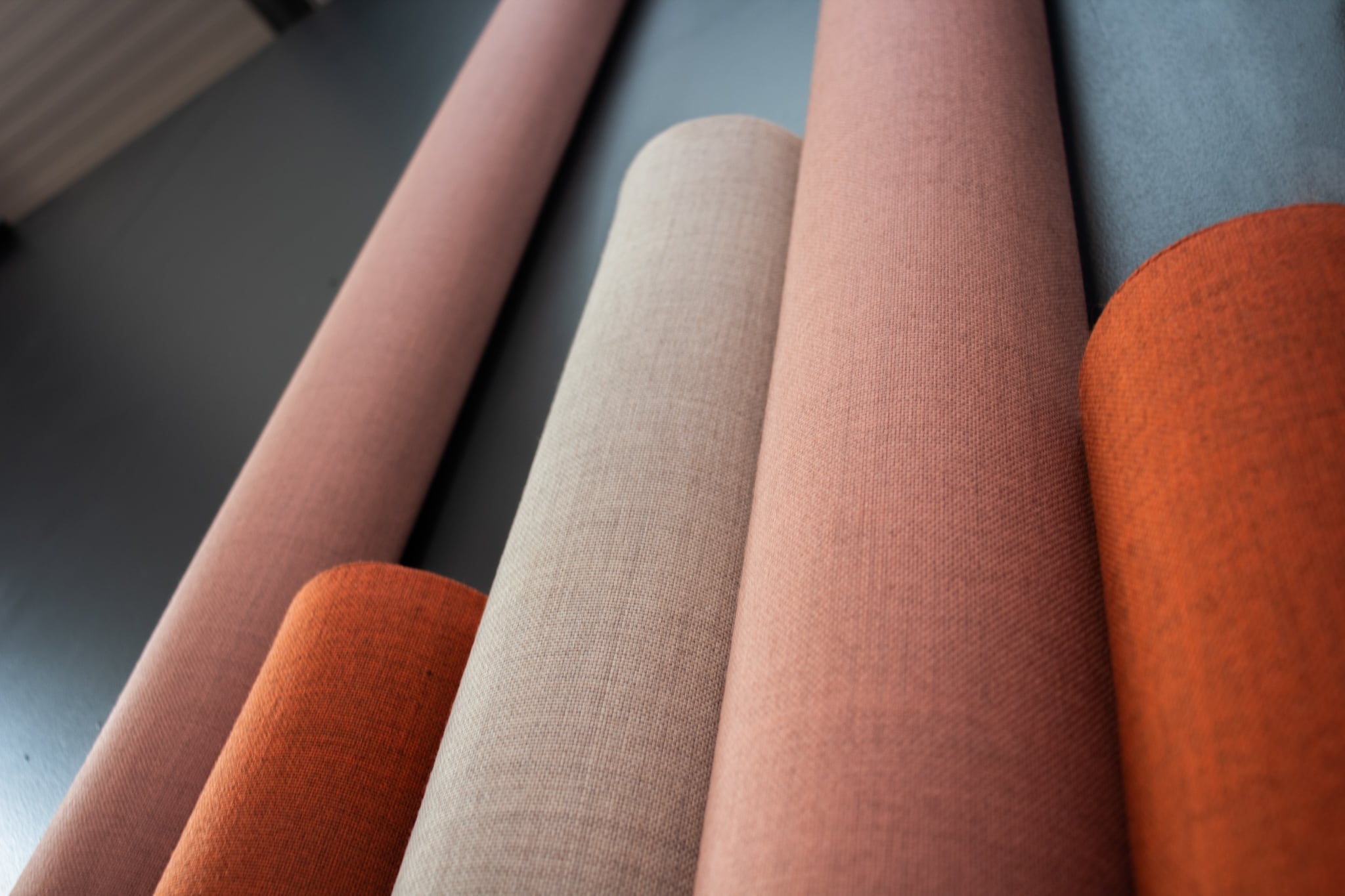

Finish 3: Fabric

The system can be personalised and customised to a variety of colours and sizes using different fabrics from all the leading acoustic manufacturers.

Choose your fabrics

Choose your felt

Have any questions?

Contact us and one of our sales team will be happy to help
